RAINMASTER D 24 Fill level indicator and controller for mains water top-up


overview:

  • fill level indicator for water tanks of a depth up to 3 m
  • clear LED display from 0 bis 100 %
  • LED display of supplement supply point
  • supplemental supply point can be adjusted to any height
  • valve outlet: 24 V DC / max. 15 W
  • Code: RM-D24
    Productnumber: 220092
    EAN Code: 4251173100837

    in stock

    -1
    278,72 €
    plus 19% VAT plus Shippment
    331,68 €
    incl. VAT. plus Shippment
    Pieces
    ON REQUEST

    The RAINMASTER D 24 is a fill level indicator for water tanks of a depth up to 3 m It can be mounted in a convenient viewing place in the house and is a good addition for the RAINMASTER Favorit rainwater system. For rainwater systems using a submersible pump, the Rainmaster D automatically operates a magnetic valve, controlling the supply of mains water top-up to the tank, should the rainwater level in the tank run low. On activation, the mains water is passed through a so-called "air gap", as per DIN EN1717 regulations, and from there to the tankvia a pipe.

    Automatic calibration

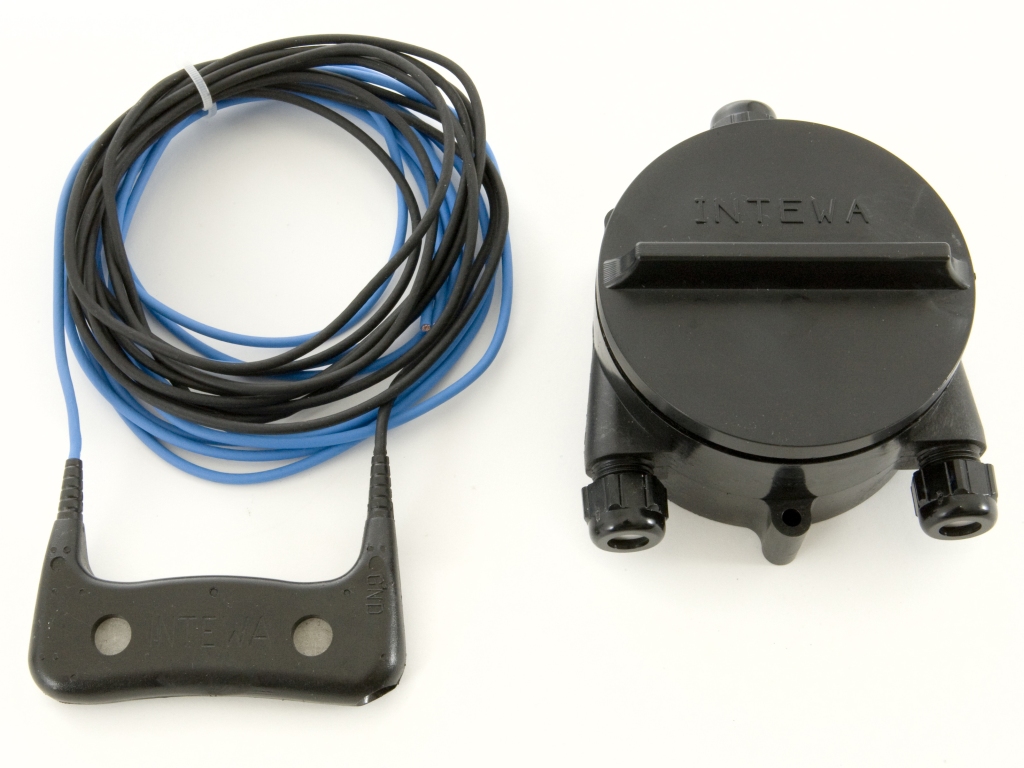

    The fill status is measured, via means of capacitance, by a sturdy PTFE Sensor cable. This is hung from the top of the tank. The setting of the respective tank water height (top and bottom) levels is done via digital calibration using two buttons on the main unit. The switching range for supplemental mains water supply by a magentic valve is at approx. 2.5 % of the measuring range, so that the flow of mains water is only activated when required. The mains water inlet supply is time-monitored, so that any possible malfunction is prevented. A further automatic protection switch prevents the calcification of valves by regularly opening the valves, for a few seconds at a time, to clear any build-up.

    More information find here

    Empty

    {"AttrNames":[{"AttributeDesc":"Anschluss Ausgang","AttributeName":"td_Anschluss_Ausgang"},{"AttributeDesc":"Anschluss Dom [mm]","AttributeName":"td_Anschluss_Dom"},{"AttributeDesc":"Anschluss Druckseite [\" IG]","AttributeName":"td_Anschl_Druckseite"},{"AttributeDesc":"Anschluss Gebläse [mm]","AttributeName":"td_Anschl_Geblaese"},{"AttributeDesc":"Anschluss Notüberlauf [DN]","AttributeName":"td_Anschl_Notueberl"},{"AttributeDesc":"Anschluss Schlauch [mm]","AttributeName":"td_Anschl_Schlauch"},{"AttributeDesc":"Beladungskapazität","AttributeName":"td_Beladungskapazit"},{"AttributeDesc":"Belastungsklasse","AttributeName":"td_Belastungsklasse"},{"AttributeDesc":"Drosselabfluss [l\/s]","AttributeName":"td_Drosselabfluss"},{"AttributeDesc":"Durchmesser Innen [mm]","AttributeName":"td_Durchm_Innen"},{"AttributeDesc":"Durchmesser Schwimmschalterkabel [mm]","AttributeName":"td_Durchm_Schwimmsch"},{"AttributeDesc":"Durchmesser Steuerleitung [mm]","AttributeName":"td_Durchm_Steuerleit"},{"AttributeDesc":"Effektive Nutzlänge [m]","AttributeName":"td_Effektive_Nutzlae"},{"AttributeDesc":"Farbe","AttributeName":"td_Farbe"},{"AttributeDesc":"Filterfläche [m²]","AttributeName":"td_Filterflaeche"},{"AttributeDesc":"Fördermedium","AttributeName":"td_Foerdermedium"},{"AttributeDesc":"Gesamtporösität [mm]","AttributeName":"td_Gesamtporoesitaet"},{"AttributeDesc":"Inhaltsstoffe","AttributeName":"td_Inhaltsstoffe"},{"AttributeDesc":"Kabellänge [m]","AttributeName":"td_Kabellaenge"},{"AttributeDesc":"Klarwasseranschluss","AttributeName":"td_Klarwasseranschl"},{"AttributeDesc":"Korngröße [mm]","AttributeName":"td_Korngroesse"},{"AttributeDesc":"Länge Spitzende [mm]","AttributeName":"td_Laenge_Spitzende"},{"AttributeDesc":"Lebensdauer UV Lampe [h]","AttributeName":"td_Lebensdauer_UV"},{"AttributeDesc":"Max. Ansaughöhe (selbstsaugend) [m]","AttributeName":"td_Max_Ansaughoehe"},{"AttributeDesc":"Max. Betriebsdruck [bar]","AttributeName":"td_Max_Betriebsdruck"},{"AttributeDesc":"Max. Durchfluss [l\/h\/bar]","AttributeName":"td_Max_Durchfluss"},{"AttributeDesc":"Max. Eintauchtiefe [m]","AttributeName":"td_Max_Eintauchtiefe"},{"AttributeDesc":"Max. Pumpendruck [bar]","AttributeName":"td_Max_Pumpendruck"},{"AttributeDesc":"Max. Stromaufnahme [A]","AttributeName":"td_Max_Stromaufnahme"},{"AttributeDesc":"Max. Volumenstrom [l\/min]","AttributeName":"td_Max_Volumenstrom"},{"AttributeDesc":"Messbereich [m]","AttributeName":"td_Messbereich"},{"AttributeDesc":"Öffnungsweite [mm]","AttributeName":"td_Oeffnungsweite"},{"AttributeDesc":"Packungseinheit [l]","AttributeName":"td_Packungseinheit"},{"AttributeDesc":"Porenweite Lage 1 grob [PPI]","AttributeName":"td_Porenweite_grob"},{"AttributeDesc":"Porenweite Lage 2 mittel [PPI]","AttributeName":"td_Porenweite_mittel"},{"AttributeDesc":"Prüfung","AttributeName":"td_Pruefung"},{"AttributeDesc":"Rollenlänge [m]","AttributeName":"td_Rollenlaenge"},{"AttributeDesc":"Schalldruck [dBA]","AttributeName":"td_Schalldruck"},{"AttributeDesc":"Schlammpumpenanschluss","AttributeName":"td_Schlammpumpenansc"},{"AttributeDesc":"Schüttdichte [mm]","AttributeName":"td_Schuettdichte"},{"AttributeDesc":"Schutzklasse [IP]","AttributeName":"td_Schutzklasse"},{"AttributeDesc":"Siebweite [mm]","AttributeName":"td_Siebweite"},{"AttributeDesc":"Signalausgang [mA]","AttributeName":"td_Signalausgang"},{"AttributeDesc":"Signaleingang","AttributeName":"td_Signaleingang"},{"AttributeDesc":"Spannungsausgang [VDC]","AttributeName":"td_Spannungsausgang"},{"AttributeDesc":"Spannungseingang [VAC\/Hz]","AttributeName":"td_Spannungseingang"},{"AttributeDesc":"Speichervolumen [l]","AttributeName":"td_Speichervolumen"},{"AttributeDesc":"Spezifische Oberfläche [m²]","AttributeName":"td_Spezifische_Oberf"},{"AttributeDesc":"Spezifisches Gewicht [kg\/m³]","AttributeName":"td_Spezifisches_Gewi"},{"AttributeDesc":"Wirkungsgrad effektiv [%]","AttributeName":"td_Wirkungsgrad_effe"},{"AttributeDesc":"Zulaufanschluss [DN]","AttributeName":"td_Zulaufanschluss"},{"AttributeDesc":"Zusatzhöhe [mm]","AttributeName":"td_Zusatzhoehe"},{"AttributeDesc":"Gewicht Brutto (inkl. Verpackung) [kg]","AttributeName":"Vers_Gewicht_brutto"},{"AttributeDesc":"EU-Palette max. Bestückung [Stk]","AttributeName":"Vers_EU_Palette_max"},{"AttributeDesc":"Breite EU-Palette max. bestückt [m]","AttributeName":"Vers_Breite_EU_Palle"},{"AttributeDesc":"Breite Karton [mm]","AttributeName":"Vers_Breite_Karton"},{"AttributeDesc":"Gewicht Karton [kg]","AttributeName":"Vers_Gewicht_Karton"},{"AttributeDesc":"Anschluss Eingang","AttributeName":"td_Anschluss_Eingang"},{"AttributeDesc":"Anschluss Permeat [AG]","AttributeName":"td_Anschl_Permeat"},{"AttributeDesc":"Anschlüsse","AttributeName":"td_Anschluesse"},{"AttributeDesc":"Durchfluss bei 400J\/m²","AttributeName":"td_Durchfluss_jm"},{"AttributeDesc":"Durchführung","AttributeName":"td_Durchfuehrung"},{"AttributeDesc":"Durchmesser [mm]","AttributeName":"td_Durchmesser"},{"AttributeDesc":"Durchmesser Außen [mm]","AttributeName":"td_Durchm_Aussen"},{"AttributeDesc":"Flächengewicht [g\/m²]","AttributeName":"td_Flaechengewicht"},{"AttributeDesc":"Höhe Schmutzwasseranschluss [mm]","AttributeName":"td_Hoehe_Schmutzwass"},{"AttributeDesc":"Höhe Zulauf [mm]","AttributeName":"td_Hoehe_Zulauf"},{"AttributeDesc":"Höhenversatz Δh [mm]","AttributeName":"td_Hoehenversatz"},{"AttributeDesc":"Inhalt [ml]","AttributeName":"td_Inhalt"},{"AttributeDesc":"Inhalt Kleber [ml]","AttributeName":"td_Inhalt_Kleber"},{"AttributeDesc":"Inhalt Primer [ml]","AttributeName":"td_Inhalt_Primer"},{"AttributeDesc":"Koppelanschluss","AttributeName":"td_Koppelanschluss"},{"AttributeDesc":"Länge Schwimmschalterkabel [m]","AttributeName":"td_Laenge_Schwimmsch"},{"AttributeDesc":"Länge Sensorkabel [m]","AttributeName":"td_Laenge_Sensorkabe"},{"AttributeDesc":"Länge Steuerleitung [m]","AttributeName":"td_Laenge_Steuerleit"},{"AttributeDesc":"Lebensdauer","AttributeName":"td_Lebensdauer"},{"AttributeDesc":"Leistungsaufnahme [W]","AttributeName":"td_Leistungsaufnahme"},{"AttributeDesc":"Material","AttributeName":"td_Material"},{"AttributeDesc":"Max. Förderhöhe [m]","AttributeName":"td_Max_Foerderhoehe"},{"AttributeDesc":"Max. Höhe des höchsten Verbrauchers [m]","AttributeName":"td_Max_Hoehe_Verbrau"},{"AttributeDesc":"Minimaler Biegeradius [mm]","AttributeName":"td_Min_Biegeradius"},{"AttributeDesc":"Monitoring","AttributeName":"td_Monitoring"},{"AttributeDesc":"Netzspannung [V AC \/ Hz]","AttributeName":"td_Netzspannung"},{"AttributeDesc":"Niveauausgleich [mm]","AttributeName":"td_Niveauausgleich"},{"AttributeDesc":"Prüfkraft [kN]","AttributeName":"td_Pruefkraft"},{"AttributeDesc":"Pumpeneinschaltdruck [bar]","AttributeName":"td_Pumpeneinschaltdr"},{"AttributeDesc":"Sauganschluss [\" AG]","AttributeName":"td_Sauganschluss"},{"AttributeDesc":"Schmutzwasseranschluss","AttributeName":"td_Schmutzwasseransc"},{"AttributeDesc":"Schulterhöhe [mm]","AttributeName":"td_Schulterhoehe"},{"AttributeDesc":"Standbyleistung [W]","AttributeName":"td_Standbyleistung"},{"AttributeDesc":"Stempeldurchdrückkraft [N]","AttributeName":"td_Stempeldurchdruec"},{"AttributeDesc":"Strahlerleistung [W]","AttributeName":"td_Strahlerleistung"},{"AttributeDesc":"Temperaturbereich [°C]","AttributeName":"td_Temperaturbereich"},{"AttributeDesc":"Toleranz [%]","AttributeName":"td_Toleranz"},{"AttributeDesc":"Trinkwasseranschluss [\" IG]","AttributeName":"td_Trinkwasseranschl"},{"AttributeDesc":"Überlastschutz","AttributeName":"td_Ueberlastschutz"},{"AttributeDesc":"UV Stabilisierung","AttributeName":"td_UV_Stabilisierung"},{"AttributeDesc":"Wasserdurchlässigkeit [l\/sm²]","AttributeName":"td_Wasserdurchlaessi"},{"AttributeDesc":"Wechselsprung [l\/s]","AttributeName":"td_Wechselsprung"},{"AttributeDesc":"Zertifizierung","AttributeName":"td_Zertifizierung"},{"AttributeDesc":"Zul. Trinkwasservordruck [bar]","AttributeName":"td_Zul_Trinkwasservo"},{"AttributeDesc":"Betriebstemperatur [°C]","AttributeName":"td_Zul_Verarbeitungs"},{"AttributeDesc":"Zulassung","AttributeName":"td_Zulassung"},{"AttributeDesc":"Abmessung EU Palette max. bestückt (L x B x H)[cm]","AttributeName":"Vers_Abmessung_EU_Pa"},{"AttributeDesc":"Abmessung Karton (Länge x Breite x Höhe) [mm]","AttributeName":"Vers_Abmessung_Karto"},{"AttributeDesc":"Gewicht EU Palette max. bestückt (LKW) [kg]","AttributeName":"Vers_Gewicht_EU_Pale"},{"AttributeDesc":"Volumen Karton [m³]","AttributeName":"Vers_Volumen_Karton"},{"AttributeDesc":"Volumen EU-Palette max. (LKW) [m³]","AttributeName":"Vers_Volumen_EU_Pall"},{"AttributeDesc":"Länge EU_Palette max. bestückt [m]","AttributeName":"Vers_Laenge_EU_Palet"},{"AttributeDesc":"Volumen [l]","AttributeName":"Vers_Volumen"},{"AttributeDesc":"Betriebsspannung [VDC]","AttributeName":"td_Betriebsspannung"},{"AttributeDesc":"Einsatzdruckbereich [bar] ","AttributeName":"td_Einsatzdruckberei"},{"AttributeDesc":"Kabeldurchmesser [mm]","AttributeName":"td_Kabeldurchmesser"},{"AttributeDesc":"Geotextilrobustheitsklasse","AttributeName":"td_Geotextilrobusth"},{"AttributeDesc":"Mittlere Porengröße [µm]","AttributeName":"td_Mit_Porengroesse"},{"AttributeDesc":"Höhe EU-Palette max. bestückt [m]","AttributeName":"Vers_Hoehe_EU_Palett"},{"AttributeDesc":"Höhe Karton [mm]","AttributeName":"Vers_Hoehe_Karton"},{"AttributeDesc":"Länge Karton [mm]","AttributeName":"Vers_Laenge_Karton"},{"AttributeDesc":"Gewicht_Netto [kg]","AttributeName":"td_Gewicht_Netto"},{"AttributeDesc":"Zul. Trinkwasserdruck [bar]","AttributeName":"td_Zul_Trinkwasserdr"}]}

    {"Attr":[{"RecordID":1057,"EntityID":2000,"Attr_PR":-1,"Attr_td_Durchm_Steuerleit":"6","Attr_td_Laenge_Sensorkabe":"3","Attr_td_Laenge_Steuerleit":"20","Attr_td_Netzspannung":"230","Attr_td_Standbyleistung":1.0000,"Attr_Vers_Abmessung_Karto":"305 x 220 ","Attr_Vers_Gewicht_brutto":"1,8","Attr_Vers_Volumen_Karton":"0.008","Attr_td_Betriebsspannung":"24","Attr_YT_Code":"0PhYYDCe-bM"}]}

    12,5

    6,7

    3,5

    1,62

    Kg

    spare parts
    RMD-ST
    1494
    201,73 €
    incl. VAT plus shippment
    Productdetails
    AC/DC Adapter for Rainmaster D24 with AU plug
    • 0,75 A
    • 24 V
    • 2 pin Stecker TYP I
    1496
    21,66 €
    incl. VAT plus shippment
    Productdetails
    RMD N-EU
    • EU Plug (2-pin Typ C)
    • 24 V
    • 0,75 A
    1497
    21,66 €
    incl. VAT plus shippment
    Productdetails
    RMD N-USA
    • for RM-D24
    • 2 pin plug Typ A (NEMA1)
    • 24 V, 0.75 A
    1498
    21,66 €
    incl. VAT plus shippment
    Productdetails
    RMD N-UK
    • for RM-D24
    • 3-pin Typ G
    • 24 V; 0,75 A
    1500
    21,66 €
    incl. VAT plus shippment
    Productdetails

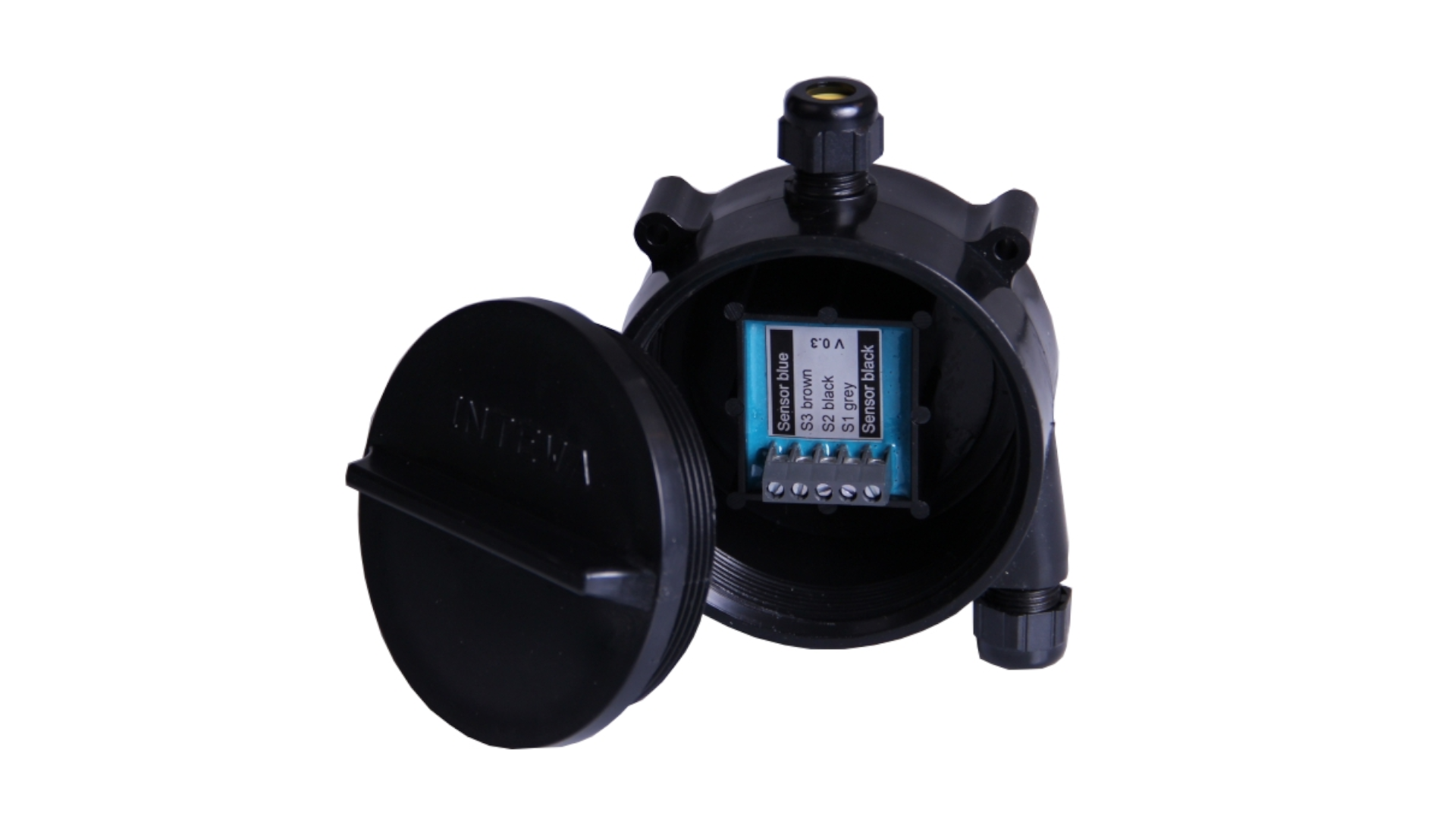

    RMD-SE3
    1601
    97,77 €
    incl. VAT plus shippment
    Productdetails

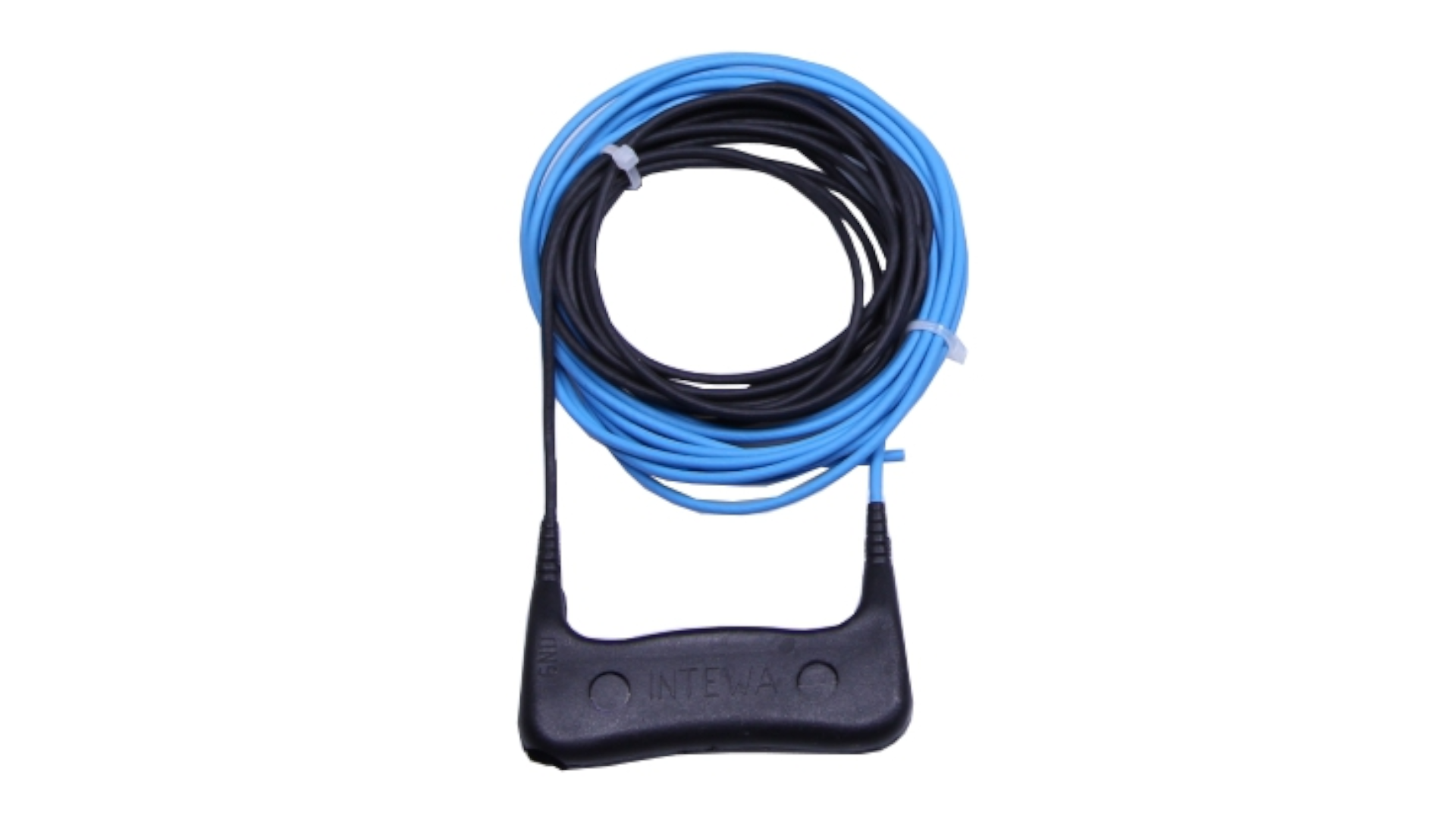

    RMD-S3
    • length 3m
    1605
    81,68 €
    incl. VAT plus shippment
    Productdetails
