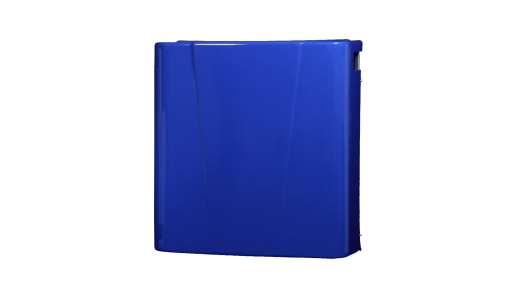

RAINMASTER Eco 10
overview:
The optimized central pump and control unit for rainwater harvesting or water reuse for single family dwelling
in stock
-1plus 19% VAT plus Shippment
incl. VAT. plus Shippment
The RAINMASTER Eco is an innovation for rainwater units. It is the fully automatic, operating and monitoring station combining pump, controller and built-in mains water top-up. Our new technology can easily be installed in the basement, garage or in the ground floor utility room of any single-family dwelling. The rainwater is pumped from a tank via a suction hose and is used internally for toilet flushing, in the washing machine and externally for watering the garden. If the supply of rainwater or greywater runs low then the RAINMASTER Eco automatically switches to mains water top up, so you’re never out of water.
- 20m garden hose with a spray nozzle
- A mini lawn sprinkler with a flow rate up to 2 bar/400 l/h, Gardena Aquazoom 250/1 Sprinkler = watered area approx. 80 m²
- Drip irrigation systems are equipped with an expansion tank
- A high-pressure cleaner with a flow rate up to 500 l/h
Note on diaphragm pump The RM-Eco is installed with a diaphragm pump. This type of pump functions as a displacement pump. In comparison to the typically installed centrifugal pump (ca. 65 dB (A) they are exceedingly quiet with 50-56 dB (A). However it must be noted that displacement pumps cause vibrations. These vibrations can cause impluse-induced sonic transmissions that are relayed along the piping causing noises. >Information regarding to this can be found in the operating instructions.
Safety first Pump, controller and floating switch of the RAINMASTER Eco are run from a 24 V low-voltage supply for added safety. This low voltage is obtained via a switchable power supply, which can be used on 110-230 V throughout the world. The switchable power supply fulfills all important, internationally recognized test certificates. This means maximum safety during installation and operation of the rainwater system and cistern. Alternatively, the RAINMASTER Eco can also be run directly off a DC supply, for example a 24 V battery from a photovoltaic system.
{"AttrNames":[{"AttributeDesc":"Anschluss Ausgang","AttributeName":"td_Anschluss_Ausgang"},{"AttributeDesc":"Anschluss Dom [mm]","AttributeName":"td_Anschluss_Dom"},{"AttributeDesc":"Anschluss Druckseite [\" IG]","AttributeName":"td_Anschl_Druckseite"},{"AttributeDesc":"Anschluss Gebläse [mm]","AttributeName":"td_Anschl_Geblaese"},{"AttributeDesc":"Anschluss Notüberlauf [DN]","AttributeName":"td_Anschl_Notueberl"},{"AttributeDesc":"Anschluss Schlauch [mm]","AttributeName":"td_Anschl_Schlauch"},{"AttributeDesc":"Beladungskapazität","AttributeName":"td_Beladungskapazit"},{"AttributeDesc":"Belastungsklasse","AttributeName":"td_Belastungsklasse"},{"AttributeDesc":"Drosselabfluss [l\/s]","AttributeName":"td_Drosselabfluss"},{"AttributeDesc":"Durchmesser Innen [mm]","AttributeName":"td_Durchm_Innen"},{"AttributeDesc":"Durchmesser Schwimmschalterkabel [mm]","AttributeName":"td_Durchm_Schwimmsch"},{"AttributeDesc":"Durchmesser Steuerleitung [mm]","AttributeName":"td_Durchm_Steuerleit"},{"AttributeDesc":"Effektive Nutzlänge [m]","AttributeName":"td_Effektive_Nutzlae"},{"AttributeDesc":"Farbe","AttributeName":"td_Farbe"},{"AttributeDesc":"Filterfläche [m²]","AttributeName":"td_Filterflaeche"},{"AttributeDesc":"Fördermedium","AttributeName":"td_Foerdermedium"},{"AttributeDesc":"Gesamtporösität [mm]","AttributeName":"td_Gesamtporoesitaet"},{"AttributeDesc":"Inhaltsstoffe","AttributeName":"td_Inhaltsstoffe"},{"AttributeDesc":"Kabellänge [m]","AttributeName":"td_Kabellaenge"},{"AttributeDesc":"Klarwasseranschluss","AttributeName":"td_Klarwasseranschl"},{"AttributeDesc":"Korngröße [mm]","AttributeName":"td_Korngroesse"},{"AttributeDesc":"Länge Spitzende [mm]","AttributeName":"td_Laenge_Spitzende"},{"AttributeDesc":"Lebensdauer UV Lampe [h]","AttributeName":"td_Lebensdauer_UV"},{"AttributeDesc":"Max. Ansaughöhe (selbstsaugend) [m]","AttributeName":"td_Max_Ansaughoehe"},{"AttributeDesc":"Max. Betriebsdruck [bar]","AttributeName":"td_Max_Betriebsdruck"},{"AttributeDesc":"Max. Durchfluss [l\/h\/bar]","AttributeName":"td_Max_Durchfluss"},{"AttributeDesc":"Max. Eintauchtiefe [m]","AttributeName":"td_Max_Eintauchtiefe"},{"AttributeDesc":"Max. Pumpendruck [bar]","AttributeName":"td_Max_Pumpendruck"},{"AttributeDesc":"Max. Stromaufnahme [A]","AttributeName":"td_Max_Stromaufnahme"},{"AttributeDesc":"Max. Volumenstrom [l\/min]","AttributeName":"td_Max_Volumenstrom"},{"AttributeDesc":"Messbereich [m]","AttributeName":"td_Messbereich"},{"AttributeDesc":"Öffnungsweite [mm]","AttributeName":"td_Oeffnungsweite"},{"AttributeDesc":"Packungseinheit [l]","AttributeName":"td_Packungseinheit"},{"AttributeDesc":"Porenweite Lage 1 grob [PPI]","AttributeName":"td_Porenweite_grob"},{"AttributeDesc":"Porenweite Lage 2 mittel [PPI]","AttributeName":"td_Porenweite_mittel"},{"AttributeDesc":"Prüfung","AttributeName":"td_Pruefung"},{"AttributeDesc":"Rollenlänge [m]","AttributeName":"td_Rollenlaenge"},{"AttributeDesc":"Schalldruck [dBA]","AttributeName":"td_Schalldruck"},{"AttributeDesc":"Schlammpumpenanschluss","AttributeName":"td_Schlammpumpenansc"},{"AttributeDesc":"Schüttdichte [mm]","AttributeName":"td_Schuettdichte"},{"AttributeDesc":"Schutzklasse [IP]","AttributeName":"td_Schutzklasse"},{"AttributeDesc":"Siebweite [mm]","AttributeName":"td_Siebweite"},{"AttributeDesc":"Signalausgang [mA]","AttributeName":"td_Signalausgang"},{"AttributeDesc":"Signaleingang","AttributeName":"td_Signaleingang"},{"AttributeDesc":"Spannungsausgang [VDC]","AttributeName":"td_Spannungsausgang"},{"AttributeDesc":"Spannungseingang [VAC\/Hz]","AttributeName":"td_Spannungseingang"},{"AttributeDesc":"Speichervolumen [l]","AttributeName":"td_Speichervolumen"},{"AttributeDesc":"Spezifische Oberfläche [m²]","AttributeName":"td_Spezifische_Oberf"},{"AttributeDesc":"Spezifisches Gewicht [kg\/m³]","AttributeName":"td_Spezifisches_Gewi"},{"AttributeDesc":"Wirkungsgrad effektiv [%]","AttributeName":"td_Wirkungsgrad_effe"},{"AttributeDesc":"Zulaufanschluss [DN]","AttributeName":"td_Zulaufanschluss"},{"AttributeDesc":"Zusatzhöhe [mm]","AttributeName":"td_Zusatzhoehe"},{"AttributeDesc":"Gewicht Brutto (inkl. Verpackung) [kg]","AttributeName":"Vers_Gewicht_brutto"},{"AttributeDesc":"EU-Palette max. Bestückung [Stk]","AttributeName":"Vers_EU_Palette_max"},{"AttributeDesc":"Breite EU-Palette max. bestückt [m]","AttributeName":"Vers_Breite_EU_Palle"},{"AttributeDesc":"Breite Karton [mm]","AttributeName":"Vers_Breite_Karton"},{"AttributeDesc":"Gewicht Karton [kg]","AttributeName":"Vers_Gewicht_Karton"},{"AttributeDesc":"Anschluss Eingang","AttributeName":"td_Anschluss_Eingang"},{"AttributeDesc":"Anschluss Permeat [AG]","AttributeName":"td_Anschl_Permeat"},{"AttributeDesc":"Anschlüsse","AttributeName":"td_Anschluesse"},{"AttributeDesc":"Durchfluss bei 400J\/m²","AttributeName":"td_Durchfluss_jm"},{"AttributeDesc":"Durchführung","AttributeName":"td_Durchfuehrung"},{"AttributeDesc":"Durchmesser [mm]","AttributeName":"td_Durchmesser"},{"AttributeDesc":"Durchmesser Außen [mm]","AttributeName":"td_Durchm_Aussen"},{"AttributeDesc":"Flächengewicht [g\/m²]","AttributeName":"td_Flaechengewicht"},{"AttributeDesc":"Höhe Schmutzwasseranschluss [mm]","AttributeName":"td_Hoehe_Schmutzwass"},{"AttributeDesc":"Höhe Zulauf [mm]","AttributeName":"td_Hoehe_Zulauf"},{"AttributeDesc":"Höhenversatz Δh [mm]","AttributeName":"td_Hoehenversatz"},{"AttributeDesc":"Inhalt [ml]","AttributeName":"td_Inhalt"},{"AttributeDesc":"Inhalt Kleber [ml]","AttributeName":"td_Inhalt_Kleber"},{"AttributeDesc":"Inhalt Primer [ml]","AttributeName":"td_Inhalt_Primer"},{"AttributeDesc":"Koppelanschluss","AttributeName":"td_Koppelanschluss"},{"AttributeDesc":"Länge Schwimmschalterkabel [m]","AttributeName":"td_Laenge_Schwimmsch"},{"AttributeDesc":"Länge Sensorkabel [m]","AttributeName":"td_Laenge_Sensorkabe"},{"AttributeDesc":"Länge Steuerleitung [m]","AttributeName":"td_Laenge_Steuerleit"},{"AttributeDesc":"Lebensdauer","AttributeName":"td_Lebensdauer"},{"AttributeDesc":"Leistungsaufnahme [W]","AttributeName":"td_Leistungsaufnahme"},{"AttributeDesc":"Material","AttributeName":"td_Material"},{"AttributeDesc":"Max. Förderhöhe [m]","AttributeName":"td_Max_Foerderhoehe"},{"AttributeDesc":"Max. Höhe des höchsten Verbrauchers [m]","AttributeName":"td_Max_Hoehe_Verbrau"},{"AttributeDesc":"Minimaler Biegeradius [mm]","AttributeName":"td_Min_Biegeradius"},{"AttributeDesc":"Monitoring","AttributeName":"td_Monitoring"},{"AttributeDesc":"Netzspannung [V AC \/ Hz]","AttributeName":"td_Netzspannung"},{"AttributeDesc":"Niveauausgleich [mm]","AttributeName":"td_Niveauausgleich"},{"AttributeDesc":"Prüfkraft [kN]","AttributeName":"td_Pruefkraft"},{"AttributeDesc":"Pumpeneinschaltdruck [bar]","AttributeName":"td_Pumpeneinschaltdr"},{"AttributeDesc":"Sauganschluss [\" AG]","AttributeName":"td_Sauganschluss"},{"AttributeDesc":"Schmutzwasseranschluss","AttributeName":"td_Schmutzwasseransc"},{"AttributeDesc":"Schulterhöhe [mm]","AttributeName":"td_Schulterhoehe"},{"AttributeDesc":"Standbyleistung [W]","AttributeName":"td_Standbyleistung"},{"AttributeDesc":"Stempeldurchdrückkraft [N]","AttributeName":"td_Stempeldurchdruec"},{"AttributeDesc":"Strahlerleistung [W]","AttributeName":"td_Strahlerleistung"},{"AttributeDesc":"Temperaturbereich [°C]","AttributeName":"td_Temperaturbereich"},{"AttributeDesc":"Toleranz [%]","AttributeName":"td_Toleranz"},{"AttributeDesc":"Trinkwasseranschluss [\" IG]","AttributeName":"td_Trinkwasseranschl"},{"AttributeDesc":"Überlastschutz","AttributeName":"td_Ueberlastschutz"},{"AttributeDesc":"UV Stabilisierung","AttributeName":"td_UV_Stabilisierung"},{"AttributeDesc":"Wasserdurchlässigkeit [l\/sm²]","AttributeName":"td_Wasserdurchlaessi"},{"AttributeDesc":"Wechselsprung [l\/s]","AttributeName":"td_Wechselsprung"},{"AttributeDesc":"Zertifizierung","AttributeName":"td_Zertifizierung"},{"AttributeDesc":"Zul. Trinkwasservordruck [bar]","AttributeName":"td_Zul_Trinkwasservo"},{"AttributeDesc":"Betriebstemperatur [°C]","AttributeName":"td_Zul_Verarbeitungs"},{"AttributeDesc":"Zulassung","AttributeName":"td_Zulassung"},{"AttributeDesc":"Abmessung EU Palette max. bestückt (L x B x H)[cm]","AttributeName":"Vers_Abmessung_EU_Pa"},{"AttributeDesc":"Abmessung Karton (Länge x Breite x Höhe) [mm]","AttributeName":"Vers_Abmessung_Karto"},{"AttributeDesc":"Gewicht EU Palette max. bestückt (LKW) [kg]","AttributeName":"Vers_Gewicht_EU_Pale"},{"AttributeDesc":"Volumen Karton [m³]","AttributeName":"Vers_Volumen_Karton"},{"AttributeDesc":"Volumen EU-Palette max. (LKW) [m³]","AttributeName":"Vers_Volumen_EU_Pall"},{"AttributeDesc":"Länge EU_Palette max. bestückt [m]","AttributeName":"Vers_Laenge_EU_Palet"},{"AttributeDesc":"Volumen [l]","AttributeName":"Vers_Volumen"},{"AttributeDesc":"Betriebsspannung [VDC]","AttributeName":"td_Betriebsspannung"},{"AttributeDesc":"Einsatzdruckbereich [bar] ","AttributeName":"td_Einsatzdruckberei"},{"AttributeDesc":"Kabeldurchmesser [mm]","AttributeName":"td_Kabeldurchmesser"},{"AttributeDesc":"Geotextilrobustheitsklasse","AttributeName":"td_Geotextilrobusth"},{"AttributeDesc":"Mittlere Porengröße [µm]","AttributeName":"td_Mit_Porengroesse"},{"AttributeDesc":"Höhe EU-Palette max. bestückt [m]","AttributeName":"Vers_Hoehe_EU_Palett"},{"AttributeDesc":"Höhe Karton [mm]","AttributeName":"Vers_Hoehe_Karton"},{"AttributeDesc":"Länge Karton [mm]","AttributeName":"Vers_Laenge_Karton"},{"AttributeDesc":"Gewicht_Netto [kg]","AttributeName":"td_Gewicht_Netto"},{"AttributeDesc":"Zul. Trinkwasserdruck [bar]","AttributeName":"td_Zul_Trinkwasserdr"}]}
{"Attr":[{"RecordID":1055,"EntityID":2000,"Attr_PR":-1,"Attr_td_Anschl_Notueberl":50.0000,"Attr_td_Durchm_Schwimmsch":"8","Attr_td_Laenge_Schwimmsch":"15","Attr_td_Leistungsaufnahme":"90","Attr_td_Max_Ansaughoehe":"3.6","Attr_td_Max_Hoehe_Verbrau":"10","Attr_td_Max_Volumenstrom":"10","Attr_td_Netzspannung":"110 - 230","Attr_td_Pumpeneinschaltdr":"2.2","Attr_td_Sauganschluss":"3\/4","Attr_td_Schalldruck":"50 - 56","Attr_td_Schutzklasse":"44","Attr_td_Standbyleistung":1.0000,"Attr_td_Trinkwasseranschl":"1\/2","Attr_td_Zul_Trinkwasservo":"2.5 - 6","Attr_Vers_Abmessung_Karto":"600 x 400 ","Attr_Vers_Gewicht_brutto":"11,75","Attr_Vers_Gewicht_EU_Pale":"344","Attr_Vers_EU_Palette_max":"28","Attr_Vers_Volumen_Karton":"0.0612","Attr_td_Betriebsspannung":"24","Attr_td_Einsatzdruckberei":"0 - 3.5"}]}
39,8
35,3
20
11,75
9,75
Kg
- floating charge pump, including coarse meshed suction filter
incl. VAT plus shippment
- max. working pressure: 5.0 bar
- max. flow rate: 90 l/min
- economic standard model
- the control takes place via a pressure and flow control device
- incl. pressure line set
- DVGW-certified
incl. VAT plus shippment
incl. VAT plus shippment
- 24 V DC
- 10 l/min
- incl. pressure switch
incl. VAT plus shippment
- 3-pin Typ G
- 24 V
- 4 A
incl. VAT plus shippment
- 2/3 pin Stecker TYP I
- 24 V; 4 A
incl. VAT plus shippment
- Cap and container securing
- Installation wrench
- Flat seal
incl. VAT plus shippment
- incl. 15m cable
- incl. counter weight
- incl. fixing angle
- incl. cable gland
incl. VAT plus shippment
