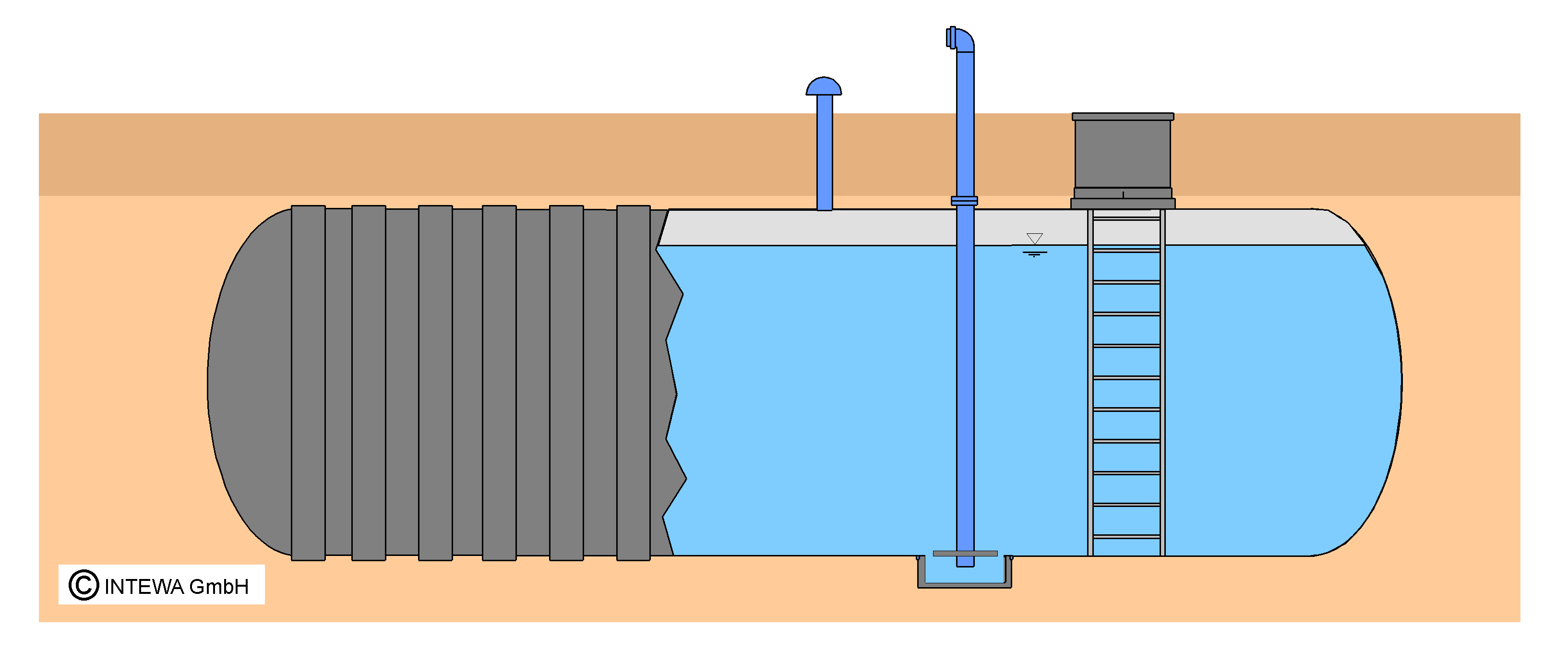

Glass fiber reinforced storage

Technical data storage tank:
Capacity: 50,000 litres
Dimensions (L x W): 11989 mm x 2448 mm
Storage tank height: 2448 mm
Weight: approx. 2473 kg
Load class: SLW30 with suitable installation

Consisting of each:
- Storage tank made of glass fibre plastic 50 m³ volume
- GRP access opening D= 800 mm
- GRP shaft extension 1000 mm
- Manhole cover D400
- GRP spigot connection DN100
- Stainless steel valve pipe
- Double flange connection DN150 (PN16)
- Extinguishing water extraction pipework made of stainless steel
- Anti-vortex plate
- GRP pump sump D= 1000 mm
- Entry ladder

Technical data storage tank:
Capacity: 70,000 litres
Dimensions (L x W): 14365 mm x 2645 mm
Storage tank height: 2645 mm
Weight: approx. 3431 kg
Load class: SLW30 with suitable installation

Consisting of each:
- Storage tank made of glass fibre plastic 70 m³ volume
- GRP access opening D= 800 mm
- GRP shaft extension 1000 mm
- Manhole cover D400
- GRP spigot connection DN100
- Stainless steel valve pipe
- Double flange connection DN150 (PN16)
- Extinguishing water extraction pipework made of stainless steel
- Anti-vortex plate
- GRP pump sump D= 1000 mm
- Entry ladder

Technical data storage tank:
Capacity: 100,000 litres
Dimensions (L x W): 14954 mm x 3086 mm
Storage tank height: 3086 mm
Weight: approx. 4617 kg
Load class: SLW30 with suitable installation

Consisting of each:

- Storage tank made of glass fibre plastic 100 m³ volume
- GRP access opening D= 800 mm
- GRP shaft extension 1000 mm
- Manhole cover D400
- GRP spigot connection DN100
- Stainless steel valve pipe
- Double flange connection DN150 (PN16)
- Extinguishing water extraction pipework made of stainless steel
- Anti-vortex plate
- GRP pump sump D= 1000 mm
- Entry ladder
