SEPAMAT F20-SC System Separator
overview:
- max. 4.5 bar and 5.5 m³/h
- System separation station according to DIN EN 1717, category 5
- Certifications: DVGW, BELGAQUA, SVGW, KIWA
- Incl. pressure connection set, pressure indicator & bleed valve

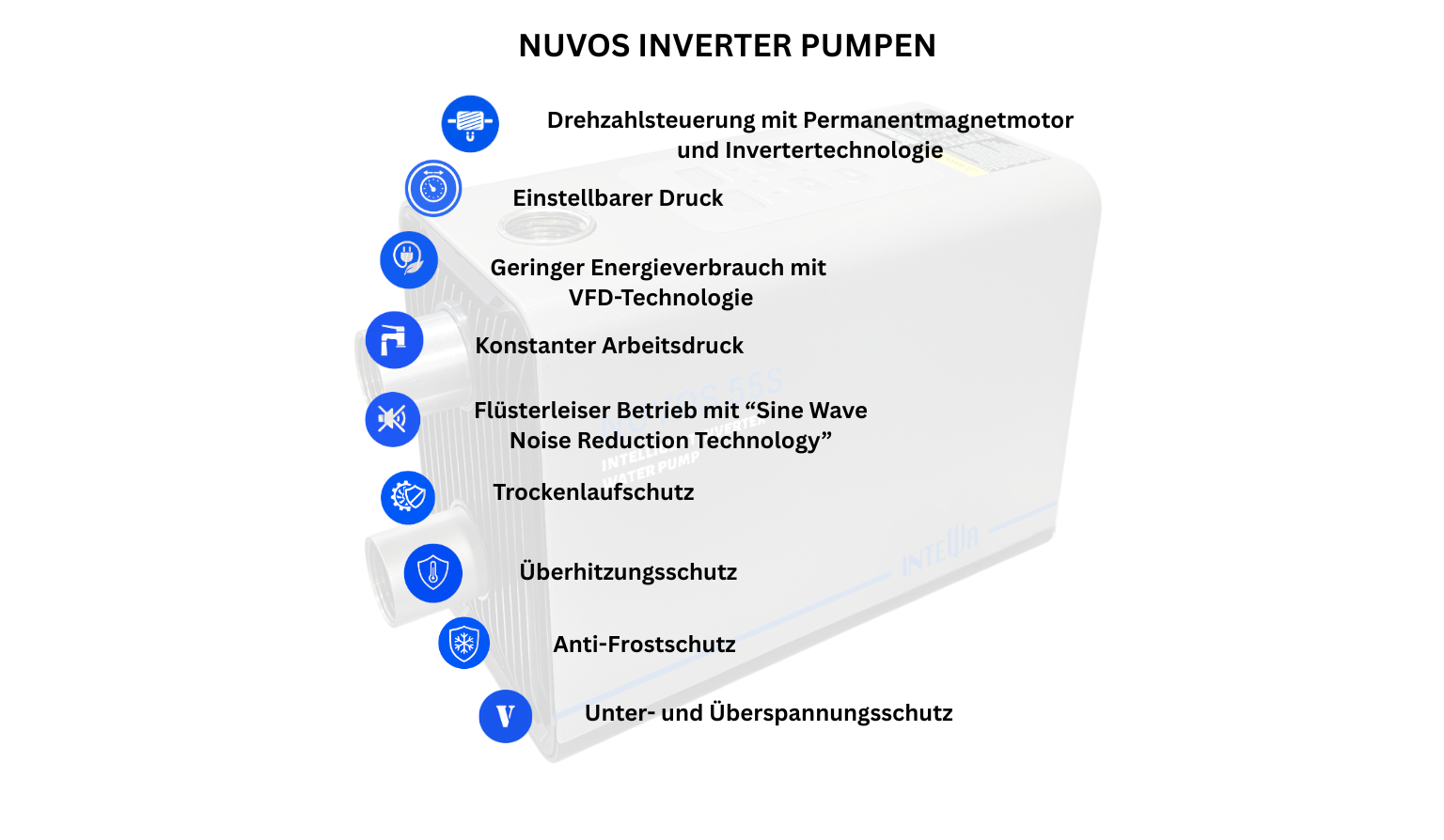

- With NUVOS inverter pump
- Speed control with permanent magnet motor and inverter technology
- Low energy consumption with VFD technology
- Adjustable, constant working pressure
- Whisper-quiet operation - with “Sine Wave Noise Reduction” technology
- maintenance-free & durable
- Dry-running protection
- Overheating protection
- Anti-frost protection
- High-quality stainless steel design
- Self-priming
- Redundant multi-pump operation as DUPLEX system possible
Please request
0plus 19% VAT plus Shippment
incl. VAT. plus Shippment
The certified INTEWA SEPAMAT system separators protect the drinking water from contamination due to a possible backflow of substances from the consumer side. A system separator is installed between the municipal drinking water pipe and the consumers that must be separated via a “free outlet” in accordance with the current drinking water regulation DIN EN 1717 category 5. These are, for example, irrigation systems, dentist's chairs, drinking troughs, swimming pool pipes and many other points where drinking water is connected. The “free outlet” is integrated into the SEPAMAT separator storage tank. The SEPAMAT can be installed in the cellar, in the garage or in a first floor room. The SEPAMATs are equipped with NUVOS pump technology with a highly efficient permanent magnet motor and inverter technology. This results in very low power consumption, low noise levels and a long service life. They already meet the efficiency standards of the European Ecodesign Directive for energy-using products (EuP). Other features, such as pressure adjustability, anti-freeze, dry-running and temperature protection, make these systems the perfect companion for numerous water supply applications.
{"AttrNames":[{"AttributeDesc":"Anschluss Ausgang [DN] [Ø mm]","AttributeName":"td_Anschluss_Ausgang"},{"AttributeDesc":"Anschluss Dom [mm]","AttributeName":"td_Anschluss_Dom"},{"AttributeDesc":"Anschluss Druckseite [\" IG]","AttributeName":"td_Anschl_Druckseite"},{"AttributeDesc":"Anschluss Gebläse [mm]","AttributeName":"td_Anschl_Geblaese"},{"AttributeDesc":"Anschluss Notüberlauf [DN] [Ø mm]","AttributeName":"td_Anschl_Notueberl"},{"AttributeDesc":"Anschluss Schlauch [DN] [Ø mm]","AttributeName":"td_Anschl_Schlauch"},{"AttributeDesc":"Beladungskapazität","AttributeName":"td_Beladungskapazit"},{"AttributeDesc":"Belastungsklasse","AttributeName":"td_Belastungsklasse"},{"AttributeDesc":"Drosselabfluss [l\/s]","AttributeName":"td_Drosselabfluss"},{"AttributeDesc":"Durchmesser Innen [mm]","AttributeName":"td_Durchm_Innen"},{"AttributeDesc":"Durchmesser Schwimmschalterkabel [mm]","AttributeName":"td_Durchm_Schwimmsch"},{"AttributeDesc":"Durchmesser Steuerleitung [mm]","AttributeName":"td_Durchm_Steuerleit"},{"AttributeDesc":"Effektive Nutzlänge [m]","AttributeName":"td_Effektive_Nutzlae"},{"AttributeDesc":"Farbe","AttributeName":"td_Farbe"},{"AttributeDesc":"Höhe Ablauf [mm]","AttributeName":"td_Hoehe_Ablauf"},{"AttributeDesc":"Fördermedium","AttributeName":"td_Foerdermedium"},{"AttributeDesc":"Gesamtporösität [mm]","AttributeName":"td_Gesamtporoesitaet"},{"AttributeDesc":"Inhaltsstoffe","AttributeName":"td_Inhaltsstoffe"},{"AttributeDesc":"Kabellänge [m]","AttributeName":"td_Kabellaenge"},{"AttributeDesc":"Anschluss Klarwasser [DN] [Ø mm]","AttributeName":"td_Klarwasseranschl"},{"AttributeDesc":"Korngröße [mm]","AttributeName":"td_Korngroesse"},{"AttributeDesc":"Länge Spitzende [mm]","AttributeName":"td_Laenge_Spitzende"},{"AttributeDesc":"Lebensdauer UV Lampe [h]","AttributeName":"td_Lebensdauer_UV"},{"AttributeDesc":"Max. Ansaughöhe (selbstsaugend) [m]","AttributeName":"td_Max_Ansaughoehe"},{"AttributeDesc":"Max. Betriebsdruck [bar]","AttributeName":"td_Max_Betriebsdruck"},{"AttributeDesc":"Max. Durchfluss [l\/h\/bar]","AttributeName":"td_Max_Durchfluss"},{"AttributeDesc":"Max. Eintauchtiefe [m]","AttributeName":"td_Max_Eintauchtiefe"},{"AttributeDesc":"Max. Pumpendruck [bar]","AttributeName":"td_Max_Pumpendruck"},{"AttributeDesc":"Max. Stromaufnahme [A]","AttributeName":"td_Max_Stromaufnahme"},{"AttributeDesc":"Max. Volumenstrom [l\/min]","AttributeName":"td_Max_Volumenstrom"},{"AttributeDesc":"Messbereich [m]","AttributeName":"td_Messbereich"},{"AttributeDesc":"Öffnungsweite [mm]","AttributeName":"td_Oeffnungsweite"},{"AttributeDesc":"Packungseinheit [l]","AttributeName":"td_Packungseinheit"},{"AttributeDesc":"Porenweite Lage 1 grob [PPI]","AttributeName":"td_Porenweite_grob"},{"AttributeDesc":"Porenweite Lage 2 mittel [PPI]","AttributeName":"td_Porenweite_mittel"},{"AttributeDesc":"Prüfung","AttributeName":"td_Pruefung"},{"AttributeDesc":"Rollenlänge [m]","AttributeName":"td_Rollenlaenge"},{"AttributeDesc":"Schalldruck [dBA]","AttributeName":"td_Schalldruck"},{"AttributeDesc":"Schlammpumpenanschluss","AttributeName":"td_Schlammpumpenansc"},{"AttributeDesc":"Schüttdichte [mm]","AttributeName":"td_Schuettdichte"},{"AttributeDesc":"Schutzklasse [IP]","AttributeName":"td_Schutzklasse"},{"AttributeDesc":"Siebweite [mm]","AttributeName":"td_Siebweite"},{"AttributeDesc":"Signalausgang [mA]","AttributeName":"td_Signalausgang"},{"AttributeDesc":"Signaleingang","AttributeName":"td_Signaleingang"},{"AttributeDesc":"Spannungsausgang [VDC]","AttributeName":"td_Spannungsausgang"},{"AttributeDesc":"Spannungseingang [VAC\/Hz]","AttributeName":"td_Spannungseingang"},{"AttributeDesc":"Speichervolumen [l]","AttributeName":"td_Speichervolumen"},{"AttributeDesc":"Spezifische Oberfläche [m²]","AttributeName":"td_Spezifische_Oberf"},{"AttributeDesc":"Spezifisches Gewicht [kg\/m³]","AttributeName":"td_Spezifisches_Gewi"},{"AttributeDesc":"Wirkungsgrad effektiv [%]","AttributeName":"td_Wirkungsgrad_effe"},{"AttributeDesc":"Zulaufanschluss [DN] [Ø mm]","AttributeName":"td_Zulaufanschluss"},{"AttributeDesc":"Gewicht Brutto (inkl. Verpackung) [kg]","AttributeName":"Vers_Gewicht_brutto"},{"AttributeDesc":"EU-Palette max. Bestückung [Stk]","AttributeName":"Vers_EU_Palette_max"},{"AttributeDesc":"Breite EU-Palette max. bestückt [m]","AttributeName":"Vers_Breite_EU_Palle"},{"AttributeDesc":"Breite Karton [mm]","AttributeName":"Vers_Breite_Karton"},{"AttributeDesc":"Gewicht Karton [kg]","AttributeName":"Vers_Gewicht_Karton"},{"AttributeDesc":"Anschluss Eingang [DN] [Ø mm]","AttributeName":"td_Anschluss_Eingang"},{"AttributeDesc":"Anschluss Permeat [mm\/Zoll]","AttributeName":"td_Anschl_Permeat"},{"AttributeDesc":"Anschlüsse [DN] [Ø mm]","AttributeName":"td_Anschluesse"},{"AttributeDesc":"Durchfluss bei 400J\/m²","AttributeName":"td_Durchfluss_jm"},{"AttributeDesc":"Durchführung","AttributeName":"td_Durchfuehrung"},{"AttributeDesc":"Durchmesser [mm]","AttributeName":"td_Durchmesser"},{"AttributeDesc":"Durchmesser Außen [mm]","AttributeName":"td_Durchm_Aussen"},{"AttributeDesc":"Flächengewicht [g\/m²]","AttributeName":"td_Flaechengewicht"},{"AttributeDesc":"Höhe Schmutzwasseranschluss [mm]","AttributeName":"td_Hoehe_Schmutzwass"},{"AttributeDesc":"Höhe Zulauf [mm]","AttributeName":"td_Hoehe_Zulauf"},{"AttributeDesc":"Höhenversatz Δh [mm]","AttributeName":"td_Hoehenversatz"},{"AttributeDesc":"Inhalt [ml]","AttributeName":"td_Inhalt"},{"AttributeDesc":"Inhalt Kleber [ml]","AttributeName":"td_Inhalt_Kleber"},{"AttributeDesc":"Inhalt Primer [ml]","AttributeName":"td_Inhalt_Primer"},{"AttributeDesc":"Koppelanschluss [\"]","AttributeName":"td_Koppelanschluss"},{"AttributeDesc":"Länge Schwimmschalterkabel [m]","AttributeName":"td_Laenge_Schwimmsch"},{"AttributeDesc":"Länge Sensorkabel [m]","AttributeName":"td_Laenge_Sensorkabe"},{"AttributeDesc":"Länge Steuerleitung [m]","AttributeName":"td_Laenge_Steuerleit"},{"AttributeDesc":"Lebensdauer","AttributeName":"td_Lebensdauer"},{"AttributeDesc":"Leistungsaufnahme [kW]","AttributeName":"td_Leistungsaufnahme"},{"AttributeDesc":"Material","AttributeName":"td_Material"},{"AttributeDesc":"Max. Förderhöhe [m]","AttributeName":"td_Max_Foerderhoehe"},{"AttributeDesc":"Max. Höhe des höchsten Verbrauchers [m]","AttributeName":"td_Max_Hoehe_Verbrau"},{"AttributeDesc":"Minimaler Biegeradius [mm]","AttributeName":"td_Min_Biegeradius"},{"AttributeDesc":"Monitoring","AttributeName":"td_Monitoring"},{"AttributeDesc":"Netzspannung [VAC \/ Hz]","AttributeName":"td_Netzspannung"},{"AttributeDesc":"Niveauausgleich [mm]","AttributeName":"td_Niveauausgleich"},{"AttributeDesc":"Prüfkraft [kN]","AttributeName":"td_Pruefkraft"},{"AttributeDesc":"Pumpeneinschaltdruck [bar]","AttributeName":"td_Pumpeneinschaltdr"},{"AttributeDesc":"Sauganschluss [\" AG]","AttributeName":"td_Sauganschluss"},{"AttributeDesc":"Schmutzwasseranschluss","AttributeName":"td_Schmutzwasseransc"},{"AttributeDesc":"Schulterhöhe [mm]","AttributeName":"td_Schulterhoehe"},{"AttributeDesc":"Standbyleistung [W]","AttributeName":"td_Standbyleistung"},{"AttributeDesc":"Stempeldurchdrückkraft [N]","AttributeName":"td_Stempeldurchdruec"},{"AttributeDesc":"Strahlerleistung [W]","AttributeName":"td_Strahlerleistung"},{"AttributeDesc":"Temperaturbereich [°C]","AttributeName":"td_Temperaturbereich"},{"AttributeDesc":"Toleranz [%]","AttributeName":"td_Toleranz"},{"AttributeDesc":"Trinkwasseranschluss [\" IG]","AttributeName":"td_Trinkwasseranschl"},{"AttributeDesc":"Überlastschutz","AttributeName":"td_Ueberlastschutz"},{"AttributeDesc":"UV Stabilisierung","AttributeName":"td_UV_Stabilisierung"},{"AttributeDesc":"Wasserdurchlässigkeit [l\/sm²]","AttributeName":"td_Wasserdurchlaessi"},{"AttributeDesc":"Wechselsprung [l\/s]","AttributeName":"td_Wechselsprung"},{"AttributeDesc":"Zertifizierung","AttributeName":"td_Zertifizierung"},{"AttributeDesc":"Zul. Trinkwasservordruck [bar]","AttributeName":"td_Zul_Trinkwasservo"},{"AttributeDesc":"Betriebstemperatur [°C]","AttributeName":"td_Zul_Verarbeitungs"},{"AttributeDesc":"Zulassung","AttributeName":"td_Zulassung"},{"AttributeDesc":"Abmessung EU Palette max. bestückt (L x B x H)[cm]","AttributeName":"Vers_Abmessung_EU_Pa"},{"AttributeDesc":"Abmessung Karton (Länge x Breite x Höhe) [mm]","AttributeName":"Vers_Abmessung_Karto"},{"AttributeDesc":"Gewicht EU Palette max. bestückt (LKW) [kg]","AttributeName":"Vers_Gewicht_EU_Pale"},{"AttributeDesc":"Volumen Karton [m³]","AttributeName":"Vers_Volumen_Karton"},{"AttributeDesc":"Volumen EU-Palette max. (LKW) [m³]","AttributeName":"Vers_Volumen_EU_Pall"},{"AttributeDesc":"Länge EU_Palette max. bestückt [m]","AttributeName":"Vers_Laenge_EU_Palet"},{"AttributeDesc":"Volumen [l]","AttributeName":"Vers_Volumen"},{"AttributeDesc":"Betriebsspannung [VDC]","AttributeName":"td_Betriebsspannung"},{"AttributeDesc":"Einsatzdruckbereich [bar] ","AttributeName":"td_Einsatzdruckberei"},{"AttributeDesc":"Kabeldurchmesser [mm]","AttributeName":"td_Kabeldurchmesser"},{"AttributeDesc":"Volumen [l]","AttributeName":"td_Volumen"},{"AttributeDesc":"Benötigte Aufstellfläche [m²]","AttributeName":"td_ben_Aufstellflae"},{"AttributeDesc":"Log Reduktion Bakterien ","AttributeName":"td_Log_Bakterien"},{"AttributeDesc":"UF-Filterfläche [m²]","AttributeName":"td_UF_Filterflaeche"},{"AttributeDesc":"Schnittstelle GLT","AttributeName":"td_schnittstelle_glt"},{"AttributeDesc":"Höhe Techniköffnung [mm]","AttributeName":"td_Hoehe_Technik"},{"AttributeDesc":"Zulaufhöhe [mm]","AttributeName":"td_zulaufhoehe"},{"AttributeDesc":"Gewicht mit Wasser [Kg]","AttributeName":"td_Gewicht_Wasser"},{"AttributeDesc":"Geotextilrobustheitsklasse","AttributeName":"td_Geotextilrobusth"},{"AttributeDesc":"Mittlere Porengröße [µm]","AttributeName":"td_Mit_Porengroesse"},{"AttributeDesc":"Höhe EU-Palette max. bestückt [m]","AttributeName":"Vers_Hoehe_EU_Palett"},{"AttributeDesc":"Leistungsaufnahme max. [kW]","AttributeName":"td_Max_Leistung"},{"AttributeDesc":"Leistungsbedarf [kWh\/m³]","AttributeName":"td_Leistungsbedarf"},{"AttributeDesc":"Log Reduktion Viren","AttributeName":"td_Log_Viren"},{"AttributeDesc":"Anschluss Entwässerung Bodenablauf [DN]","AttributeName":"td_Anschluss_entwaes"},{"AttributeDesc":"Einlaufstutzen","AttributeName":"td_Einlaufstutzen"},{"AttributeDesc":"Isolationsklasse","AttributeName":"td_Isolationsklasse"},{"AttributeDesc":"Höhe Karton [mm]","AttributeName":"Vers_Hoehe_Karton"},{"AttributeDesc":"Länge Karton [mm]","AttributeName":"Vers_Laenge_Karton"},{"AttributeDesc":"Anschluss Saugseite [\" IG]","AttributeName":"td_Anschluss_Saug"},{"AttributeDesc":"Max. Wassertemperatur [C°]","AttributeName":"td_Max_Wassertem"},{"AttributeDesc":"Material Hydraulikgehäuse","AttributeName":"td_Material_Gehaeuse"},{"AttributeDesc":"Material Laufräder","AttributeName":"td_Material_Laufraed"},{"AttributeDesc":"Gewicht_Netto [Kg]","AttributeName":"td_Gewicht_Netto"},{"AttributeDesc":"Länge Kette [m]","AttributeName":"td_laenge_Kette"},{"AttributeDesc":"Revisionsöffnung [mm]","AttributeName":"td_Revision"},{"AttributeDesc":"Max. Umgebungstemperatur [C°]","AttributeName":"td_Max_Umgebungstemp"},{"AttributeDesc":"Zul. Trinkwasserdruck [bar]","AttributeName":"td_Zul_Trinkwasserdr"},{"AttributeDesc":"Internetanschlauss","AttributeName":"td_internetan"},{"AttributeDesc":"Höhe Notüberlauf [mm]","AttributeName":"td_hoehe_notueberlau"},{"AttributeDesc":"Ablaufventil [DN] [zoll]","AttributeName":"td_Ablaufventil"},{"AttributeDesc":"Max. Umgebungstemperatur [C°]","AttributeName":"td_Max_Umgebungstem"},{"AttributeDesc":"Arbeitsdruck einstellbar","AttributeName":"td_Arbeitsdruck_ein"},{"AttributeDesc":"Material Leiträder","AttributeName":"td_Material_Leitraed"},{"AttributeDesc":"Konformität","AttributeName":"td_konformitaet"},{"AttributeDesc":"Raumhöhe erforderlich [m]","AttributeName":"td_deckenhoehe"}]}
{"Attr":[{"RecordID":4144,"EntityID":2000,"Attr_PR":-1,"Attr_td_Anschl_Notueberl":"50.0000","Attr_td_Leistungsaufnahme":"800","Attr_td_Max_Hoehe_Verbrau":"20","Attr_td_Max_Stromaufnahme":"2.6","Attr_td_Max_Volumenstrom":"90","Attr_td_Netzspannung":"230 \/ 50-6","Attr_td_Schalldruck":"2 - 4.5","Attr_td_Schutzklasse":"44","Attr_td_Spannungsausgang":"3 x 230 \/ ","Attr_td_Standbyleistung":"16.0000","Attr_td_Trinkwasseranschl":"3\/4","Attr_td_Zul_Trinkwasservo":"2.6 - 6","Attr_Vers_Abmessung_Karto":"645 x 610 ","Attr_Vers_Gewicht_brutto":"30,7","Attr_Vers_EU_Palette_max":"9","Attr_Vers_Volumen_Karton":"0.117","Attr_WS_Versand":"Spedition Palette 120x80 cm, ab 160,00 €"}]}
59,5
55
26,5
28,7
Kg
incl. VAT plus shippment
- max. 3.2 bar and 4.1 m³/h
- System separation station according to DIN EN 1717, category 5
- Certifications: DVGW, BELGAQUA, SVGW, KIWA
- Incl. pressure connection set, pressure indicator & bleed valve
- With NUVOS inverter pump
- Speed control with permanent magnet motor and inverter technology
- Low energy consumption with VFD technology
- Adjustable, constant working pressure
- Whisper-quiet operation - with “Sine Wave Noise Reduction” technology
- maintenance-free & durable
- Dry-running protection
- Overheating protection
- Anti-frost protection
- High-quality stainless steel design
- regular priming
incl. VAT plus shippment
- max. 4.8 bar and 7 m³/h
- System separation station according to DIN EN 1717, category 5
- Certifications: DVGW, BELGAQUA, SVGW, KIWA
- Incl. pressure connection set, pressure indicator & bleed valve
- With NUVOS inverter pump
- Speed control with permanent magnet motor and inverter technology
- Low energy consumption with VFD technology
- Adjustable, constant working pressure
- Whisper-quiet operation - with “Sine Wave Noise Reduction” technology
- maintenance-free & durable
- Dry-running protection
- Overheating protection
- Anti-frost protection
- High-quality stainless steel design
- Self-priming
- Redundant multi-pump operation as DUPLEX system possible
incl. VAT plus shippment
