DRAINMAX System stormwater attenuation, 120m³


overview:

  • Integrated pre-cleaning
  • DIBt certified up to 60 t
  • Cost-efficient transport
  • Digital remote monitoring with I-CON basis possible
Code: DM-S-AT-120
Productnumber: 500248

Please request

0
Artikel auf Anfrage
25.369,10 €
plus 19% VAT plus Shippment
30.189,23 €
incl. VAT. plus Shippment
- 0%
30.189,23 €
Pieces
ON REQUEST

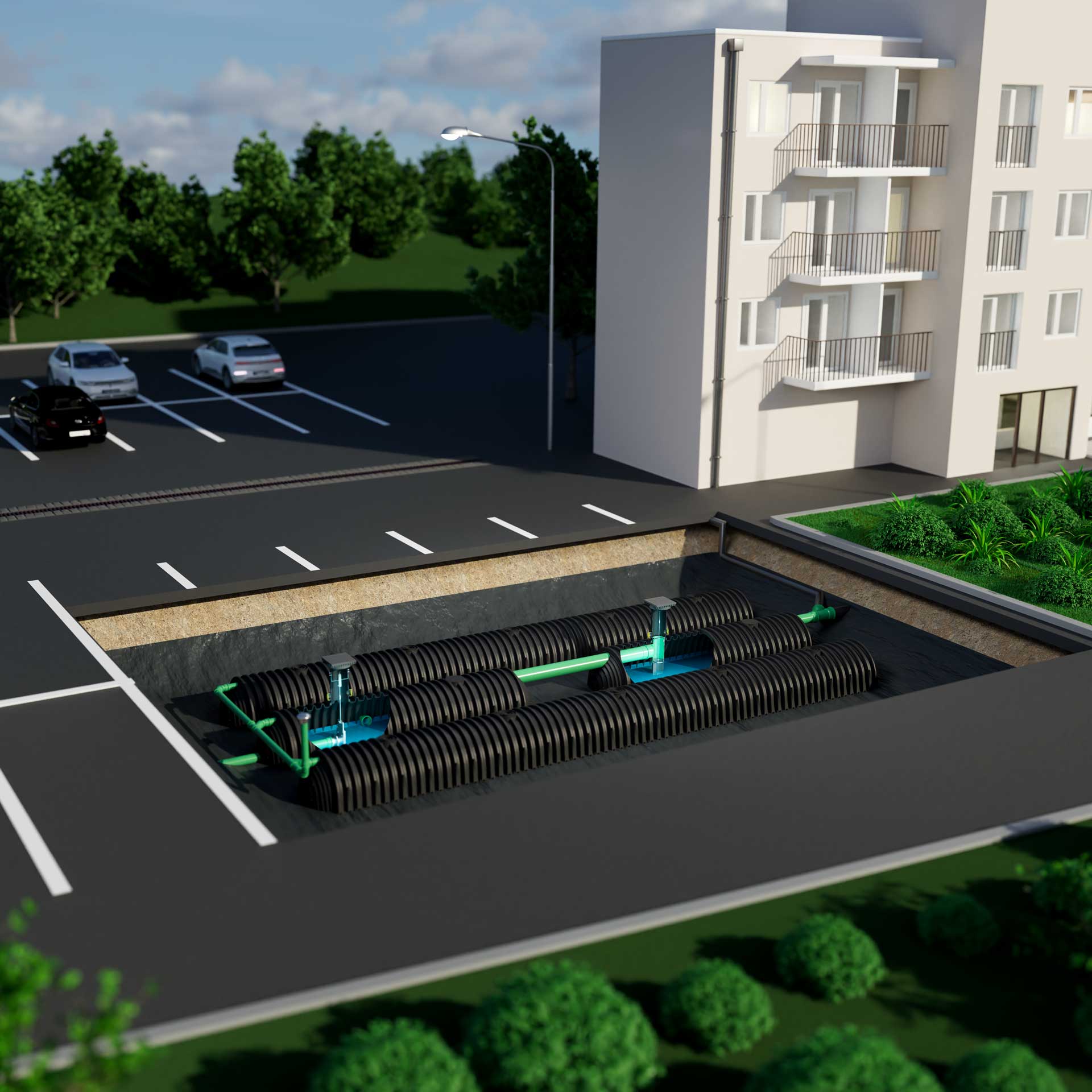

In our tunnel retention systems, the contaminated stormwater is first channeled into the sedimentation and filter area integrated into the system. This is where the contaminants are retained. Once I-CONNECT is installed, the system operator receives information about the sludge level and the throttling capacity of their retention system via their browser platform. Maintenance is easy via the integrated inspection and cleaning shaft. Our tunnel systems are installed in a basin sealed with a high-strength EPDM membrane. Our finished packages are delivered from the factory in one piece. This eliminates the need for gluing or welding on site. This guarantees absolute watertightness. The membrane is also protected by a special fleece on the bottom and a high-pressure washable fabric on the top. This allows for cleaning of the tunnel floor. The water is then buffered in the large-volume tunnels and drained through the integrated discharge throttle. This system is particularly cost-effective in terms of transport, procurement, installation, and operation. With just two different 80 cm high components, consisting of a DRAINMAX Calotte and a DRAINMAX Tunnel, flat systems of any size can be created without any connecting elements. The area above the Dibt®-certified system, which can withstand heavy loads of up to 60 t, is available for other uses, such as driveways or parking spaces.
Empty

{"AttrNames":[{"AttributeDesc":"Anschluss Ausgang [DN] [Ø mm]","AttributeName":"td_Anschluss_Ausgang"},{"AttributeDesc":"Anschluss Dom [mm]","AttributeName":"td_Anschluss_Dom"},{"AttributeDesc":"Anschluss Druckseite [\" IG]","AttributeName":"td_Anschl_Druckseite"},{"AttributeDesc":"Anschluss Gebläse [mm]","AttributeName":"td_Anschl_Geblaese"},{"AttributeDesc":"Anschluss Notüberlauf [DN] [Ø mm]","AttributeName":"td_Anschl_Notueberl"},{"AttributeDesc":"Anschluss Schlauch [DN] [Ø mm]","AttributeName":"td_Anschl_Schlauch"},{"AttributeDesc":"Beladungskapazität","AttributeName":"td_Beladungskapazit"},{"AttributeDesc":"Belastungsklasse","AttributeName":"td_Belastungsklasse"},{"AttributeDesc":"Drosselabfluss [l\/s]","AttributeName":"td_Drosselabfluss"},{"AttributeDesc":"Durchmesser Innen [mm]","AttributeName":"td_Durchm_Innen"},{"AttributeDesc":"Durchmesser Schwimmschalterkabel [mm]","AttributeName":"td_Durchm_Schwimmsch"},{"AttributeDesc":"Durchmesser Steuerleitung [mm]","AttributeName":"td_Durchm_Steuerleit"},{"AttributeDesc":"Effektive Nutzlänge [m]","AttributeName":"td_Effektive_Nutzlae"},{"AttributeDesc":"Farbe","AttributeName":"td_Farbe"},{"AttributeDesc":"Höhe Ablauf [mm]","AttributeName":"td_Hoehe_Ablauf"},{"AttributeDesc":"Fördermedium","AttributeName":"td_Foerdermedium"},{"AttributeDesc":"Gesamtporösität [mm]","AttributeName":"td_Gesamtporoesitaet"},{"AttributeDesc":"Inhaltsstoffe","AttributeName":"td_Inhaltsstoffe"},{"AttributeDesc":"Kabellänge [m]","AttributeName":"td_Kabellaenge"},{"AttributeDesc":"Anschluss Klarwasser [DN] [Ø mm]","AttributeName":"td_Klarwasseranschl"},{"AttributeDesc":"Korngröße [mm]","AttributeName":"td_Korngroesse"},{"AttributeDesc":"Länge Spitzende [mm]","AttributeName":"td_Laenge_Spitzende"},{"AttributeDesc":"Lebensdauer UV Lampe [h]","AttributeName":"td_Lebensdauer_UV"},{"AttributeDesc":"Max. Ansaughöhe (selbstsaugend) [m]","AttributeName":"td_Max_Ansaughoehe"},{"AttributeDesc":"Max. Betriebsdruck [bar]","AttributeName":"td_Max_Betriebsdruck"},{"AttributeDesc":"Max. Durchfluss [l\/h\/bar]","AttributeName":"td_Max_Durchfluss"},{"AttributeDesc":"Max. Eintauchtiefe [m]","AttributeName":"td_Max_Eintauchtiefe"},{"AttributeDesc":"Max. Pumpendruck [bar]","AttributeName":"td_Max_Pumpendruck"},{"AttributeDesc":"Max. Stromaufnahme [A]","AttributeName":"td_Max_Stromaufnahme"},{"AttributeDesc":"Max. Volumenstrom [l\/min]","AttributeName":"td_Max_Volumenstrom"},{"AttributeDesc":"Messbereich [m]","AttributeName":"td_Messbereich"},{"AttributeDesc":"Öffnungsweite [mm]","AttributeName":"td_Oeffnungsweite"},{"AttributeDesc":"Packungseinheit [l]","AttributeName":"td_Packungseinheit"},{"AttributeDesc":"Porenweite Lage 1 grob [PPI]","AttributeName":"td_Porenweite_grob"},{"AttributeDesc":"Porenweite Lage 2 mittel [PPI]","AttributeName":"td_Porenweite_mittel"},{"AttributeDesc":"Prüfung","AttributeName":"td_Pruefung"},{"AttributeDesc":"Rollenlänge [m]","AttributeName":"td_Rollenlaenge"},{"AttributeDesc":"Schalldruck [dBA]","AttributeName":"td_Schalldruck"},{"AttributeDesc":"Schlammpumpenanschluss","AttributeName":"td_Schlammpumpenansc"},{"AttributeDesc":"Schüttdichte [mm]","AttributeName":"td_Schuettdichte"},{"AttributeDesc":"Schutzklasse [IP]","AttributeName":"td_Schutzklasse"},{"AttributeDesc":"Siebweite [mm]","AttributeName":"td_Siebweite"},{"AttributeDesc":"Signalausgang [mA]","AttributeName":"td_Signalausgang"},{"AttributeDesc":"Signaleingang","AttributeName":"td_Signaleingang"},{"AttributeDesc":"Spannungsausgang [VDC]","AttributeName":"td_Spannungsausgang"},{"AttributeDesc":"Spannungseingang [VAC\/Hz]","AttributeName":"td_Spannungseingang"},{"AttributeDesc":"Speichervolumen [l]","AttributeName":"td_Speichervolumen"},{"AttributeDesc":"Spezifische Oberfläche [m²]","AttributeName":"td_Spezifische_Oberf"},{"AttributeDesc":"Spezifisches Gewicht [kg\/m³]","AttributeName":"td_Spezifisches_Gewi"},{"AttributeDesc":"Wirkungsgrad effektiv [%]","AttributeName":"td_Wirkungsgrad_effe"},{"AttributeDesc":"Zulaufanschluss [DN] [Ø mm]","AttributeName":"td_Zulaufanschluss"},{"AttributeDesc":"Gewicht Brutto (inkl. Verpackung) [kg]","AttributeName":"Vers_Gewicht_brutto"},{"AttributeDesc":"EU-Palette max. Bestückung [Stk]","AttributeName":"Vers_EU_Palette_max"},{"AttributeDesc":"Breite EU-Palette max. bestückt [m]","AttributeName":"Vers_Breite_EU_Palle"},{"AttributeDesc":"Breite Karton [mm]","AttributeName":"Vers_Breite_Karton"},{"AttributeDesc":"Gewicht Karton [kg]","AttributeName":"Vers_Gewicht_Karton"},{"AttributeDesc":"Anschluss Eingang [DN] [Ø mm]","AttributeName":"td_Anschluss_Eingang"},{"AttributeDesc":"Anschluss Permeat [mm\/Zoll]","AttributeName":"td_Anschl_Permeat"},{"AttributeDesc":"Anschlüsse [DN] [Ø mm]","AttributeName":"td_Anschluesse"},{"AttributeDesc":"Durchfluss bei 400J\/m²","AttributeName":"td_Durchfluss_jm"},{"AttributeDesc":"Durchführung","AttributeName":"td_Durchfuehrung"},{"AttributeDesc":"Durchmesser [mm]","AttributeName":"td_Durchmesser"},{"AttributeDesc":"Durchmesser Außen [mm]","AttributeName":"td_Durchm_Aussen"},{"AttributeDesc":"Flächengewicht [g\/m²]","AttributeName":"td_Flaechengewicht"},{"AttributeDesc":"Höhe Schmutzwasseranschluss [mm]","AttributeName":"td_Hoehe_Schmutzwass"},{"AttributeDesc":"Höhe Zulauf [mm]","AttributeName":"td_Hoehe_Zulauf"},{"AttributeDesc":"Höhenversatz Δh [mm]","AttributeName":"td_Hoehenversatz"},{"AttributeDesc":"Inhalt [ml]","AttributeName":"td_Inhalt"},{"AttributeDesc":"Inhalt Kleber [ml]","AttributeName":"td_Inhalt_Kleber"},{"AttributeDesc":"Inhalt Primer [ml]","AttributeName":"td_Inhalt_Primer"},{"AttributeDesc":"Koppelanschluss [\"]","AttributeName":"td_Koppelanschluss"},{"AttributeDesc":"Länge Schwimmschalterkabel [m]","AttributeName":"td_Laenge_Schwimmsch"},{"AttributeDesc":"Länge Sensorkabel [m]","AttributeName":"td_Laenge_Sensorkabe"},{"AttributeDesc":"Länge Steuerleitung [m]","AttributeName":"td_Laenge_Steuerleit"},{"AttributeDesc":"Lebensdauer","AttributeName":"td_Lebensdauer"},{"AttributeDesc":"Leistungsaufnahme [kW]","AttributeName":"td_Leistungsaufnahme"},{"AttributeDesc":"Material","AttributeName":"td_Material"},{"AttributeDesc":"Max. Förderhöhe [m]","AttributeName":"td_Max_Foerderhoehe"},{"AttributeDesc":"Max. Höhe des höchsten Verbrauchers [m]","AttributeName":"td_Max_Hoehe_Verbrau"},{"AttributeDesc":"Minimaler Biegeradius [mm]","AttributeName":"td_Min_Biegeradius"},{"AttributeDesc":"Monitoring","AttributeName":"td_Monitoring"},{"AttributeDesc":"Netzspannung [VAC \/ Hz]","AttributeName":"td_Netzspannung"},{"AttributeDesc":"Niveauausgleich [mm]","AttributeName":"td_Niveauausgleich"},{"AttributeDesc":"Prüfkraft [kN]","AttributeName":"td_Pruefkraft"},{"AttributeDesc":"Pumpeneinschaltdruck [bar]","AttributeName":"td_Pumpeneinschaltdr"},{"AttributeDesc":"Sauganschluss [\" AG]","AttributeName":"td_Sauganschluss"},{"AttributeDesc":"Schmutzwasseranschluss","AttributeName":"td_Schmutzwasseransc"},{"AttributeDesc":"Schulterhöhe [mm]","AttributeName":"td_Schulterhoehe"},{"AttributeDesc":"Standbyleistung [W]","AttributeName":"td_Standbyleistung"},{"AttributeDesc":"Stempeldurchdrückkraft [N]","AttributeName":"td_Stempeldurchdruec"},{"AttributeDesc":"Strahlerleistung [W]","AttributeName":"td_Strahlerleistung"},{"AttributeDesc":"Temperaturbereich [°C]","AttributeName":"td_Temperaturbereich"},{"AttributeDesc":"Toleranz [%]","AttributeName":"td_Toleranz"},{"AttributeDesc":"Trinkwasseranschluss [\" IG]","AttributeName":"td_Trinkwasseranschl"},{"AttributeDesc":"Überlastschutz","AttributeName":"td_Ueberlastschutz"},{"AttributeDesc":"UV Stabilisierung","AttributeName":"td_UV_Stabilisierung"},{"AttributeDesc":"Wasserdurchlässigkeit [l\/sm²]","AttributeName":"td_Wasserdurchlaessi"},{"AttributeDesc":"Wechselsprung [l\/s]","AttributeName":"td_Wechselsprung"},{"AttributeDesc":"Zertifizierung","AttributeName":"td_Zertifizierung"},{"AttributeDesc":"Zul. Trinkwasservordruck [bar]","AttributeName":"td_Zul_Trinkwasservo"},{"AttributeDesc":"Betriebstemperatur [°C]","AttributeName":"td_Zul_Verarbeitungs"},{"AttributeDesc":"Zulassung","AttributeName":"td_Zulassung"},{"AttributeDesc":"Abmessung EU Palette max. bestückt (L x B x H)[cm]","AttributeName":"Vers_Abmessung_EU_Pa"},{"AttributeDesc":"Abmessung Karton (Länge x Breite x Höhe) [mm]","AttributeName":"Vers_Abmessung_Karto"},{"AttributeDesc":"Gewicht EU Palette max. bestückt (LKW) [kg]","AttributeName":"Vers_Gewicht_EU_Pale"},{"AttributeDesc":"Volumen Karton [m³]","AttributeName":"Vers_Volumen_Karton"},{"AttributeDesc":"Volumen EU-Palette max. (LKW) [m³]","AttributeName":"Vers_Volumen_EU_Pall"},{"AttributeDesc":"Länge EU_Palette max. bestückt [m]","AttributeName":"Vers_Laenge_EU_Palet"},{"AttributeDesc":"Volumen [l]","AttributeName":"Vers_Volumen"},{"AttributeDesc":"Betriebsspannung [VDC]","AttributeName":"td_Betriebsspannung"},{"AttributeDesc":"Einsatzdruckbereich [bar] ","AttributeName":"td_Einsatzdruckberei"},{"AttributeDesc":"Kabeldurchmesser [mm]","AttributeName":"td_Kabeldurchmesser"},{"AttributeDesc":"Volumen [l]","AttributeName":"td_Volumen"},{"AttributeDesc":"Benötigte Aufstellfläche [m²]","AttributeName":"td_ben_Aufstellflae"},{"AttributeDesc":"Log Reduktion Bakterien ","AttributeName":"td_Log_Bakterien"},{"AttributeDesc":"UF-Filterfläche [m²]","AttributeName":"td_UF_Filterflaeche"},{"AttributeDesc":"Schnittstelle GLT","AttributeName":"td_schnittstelle_glt"},{"AttributeDesc":"Höhe Techniköffnung [mm]","AttributeName":"td_Hoehe_Technik"},{"AttributeDesc":"Zulaufhöhe [mm]","AttributeName":"td_zulaufhoehe"},{"AttributeDesc":"Gewicht mit Wasser [Kg]","AttributeName":"td_Gewicht_Wasser"},{"AttributeDesc":"Geotextilrobustheitsklasse","AttributeName":"td_Geotextilrobusth"},{"AttributeDesc":"Mittlere Porengröße [µm]","AttributeName":"td_Mit_Porengroesse"},{"AttributeDesc":"Höhe EU-Palette max. bestückt [m]","AttributeName":"Vers_Hoehe_EU_Palett"},{"AttributeDesc":"Leistungsaufnahme max. [kW]","AttributeName":"td_Max_Leistung"},{"AttributeDesc":"Leistungsbedarf [kWh\/m³]","AttributeName":"td_Leistungsbedarf"},{"AttributeDesc":"Log Reduktion Viren","AttributeName":"td_Log_Viren"},{"AttributeDesc":"Anschluss Entwässerung Bodenablauf [DN]","AttributeName":"td_Anschluss_entwaes"},{"AttributeDesc":"Einlaufstutzen","AttributeName":"td_Einlaufstutzen"},{"AttributeDesc":"Isolationsklasse","AttributeName":"td_Isolationsklasse"},{"AttributeDesc":"Folienbreite [m]","AttributeName":"td_folienbreite"},{"AttributeDesc":"Dehnung [%]","AttributeName":"td_dehnung"},{"AttributeDesc":"Höhe Karton [mm]","AttributeName":"Vers_Hoehe_Karton"},{"AttributeDesc":"Länge Karton [mm]","AttributeName":"Vers_Laenge_Karton"},{"AttributeDesc":"Anschluss Saugseite [\" IG]","AttributeName":"td_Anschluss_Saug"},{"AttributeDesc":"Max. Wassertemperatur [C°]","AttributeName":"td_Max_Wassertem"},{"AttributeDesc":"Material Hydraulikgehäuse","AttributeName":"td_Material_Gehaeuse"},{"AttributeDesc":"Material Laufräder","AttributeName":"td_Material_Laufraed"},{"AttributeDesc":"Gewicht_Netto [Kg]","AttributeName":"td_Gewicht_Netto"},{"AttributeDesc":"Länge Kette [m]","AttributeName":"td_laenge_Kette"},{"AttributeDesc":"Revisionsöffnung [mm]","AttributeName":"td_Revision"},{"AttributeDesc":"Max. Umgebungstemperatur [C°]","AttributeName":"td_Max_Umgebungstemp"},{"AttributeDesc":"Zul. Trinkwasserdruck [bar]","AttributeName":"td_Zul_Trinkwasserdr"},{"AttributeDesc":"Internetanschlauss","AttributeName":"td_internetan"},{"AttributeDesc":"Höhe Notüberlauf [mm]","AttributeName":"td_hoehe_notueberlau"},{"AttributeDesc":"Ablaufventil [DN] [zoll]","AttributeName":"td_Ablaufventil"},{"AttributeDesc":"Max. Umgebungstemperatur [C°]","AttributeName":"td_Max_Umgebungstem"},{"AttributeDesc":"Arbeitsdruck einstellbar","AttributeName":"td_Arbeitsdruck_ein"},{"AttributeDesc":"Material Leiträder","AttributeName":"td_Material_Leitraed"},{"AttributeDesc":"Foliendicke [mm]","AttributeName":"td_Foliendicke"},{"AttributeDesc":"Tiefe Pumpensumpf [mm]","AttributeName":"td_tiefepumpensumpf"},{"AttributeDesc":"Konformität","AttributeName":"td_konformitaet"},{"AttributeDesc":"Raumhöhe erforderlich [m]","AttributeName":"td_deckenhoehe"}]}

{"Attr":[{"RecordID":4285,"EntityID":2000,"Attr_WS_Versand":"Artikel auf Anfrage"}]}

0

0

0

0

44 Pieces 4120
DRAINMAX Tunnel middle tunnel 1,600 liters, class SLW 60
  • Storage volume 1,600 liters
  • Load class SLW 60
  • DIBt approval
  • Washable floor
  • Best price per m³
  • Depending on system size and backfill material, approx. 0.6 m³ storage volume / m² installation area
  • Lowest possible transport/storage ratio with 3.3 m³/57.6 m³ per pallet (36 tunnels)
  • Extremely fast tunnel installation performance with > 20 m³/h
4120
355,81 €
incl. VAT plus shippment
- 0%
355,81 €
Productdetails
12 Pieces 4121
DRAINMAX Tunnel cap 100 liters, load class SLW 60
  • Storage volume 100 liters
  • Load class SLW 60
  • DIBt approval
  • Connections up to DN400
4121
95,20 €
incl. VAT plus shippment
- 0%
95,20 €
Productdetails
107 Metre 1405
Woven geotextile with 2.6 m width, 190 g/m²
  • price per meter of roll
  • Special fabric as underlay for the DRAINMAX tunnel
  • suitable for high pressure flushing
  • very high load capacity
  • high water permeability
1405
9,70 €
incl. VAT plus shippment
- 0%
9,70 €
Productdetails
209 Metre 1400
Geotextile fleece with 2.5 m width, 300 g/m²
  • Price per meter of roll
  • Special filter fabric as overlay for the DRAINMAX tunnel or as separator geotextile
  • very high load capacity
  • high water permeability
1400
7,08 €
incl. VAT plus shippment
- 0%
7,08 €
Productdetails
1 Pieces 4106

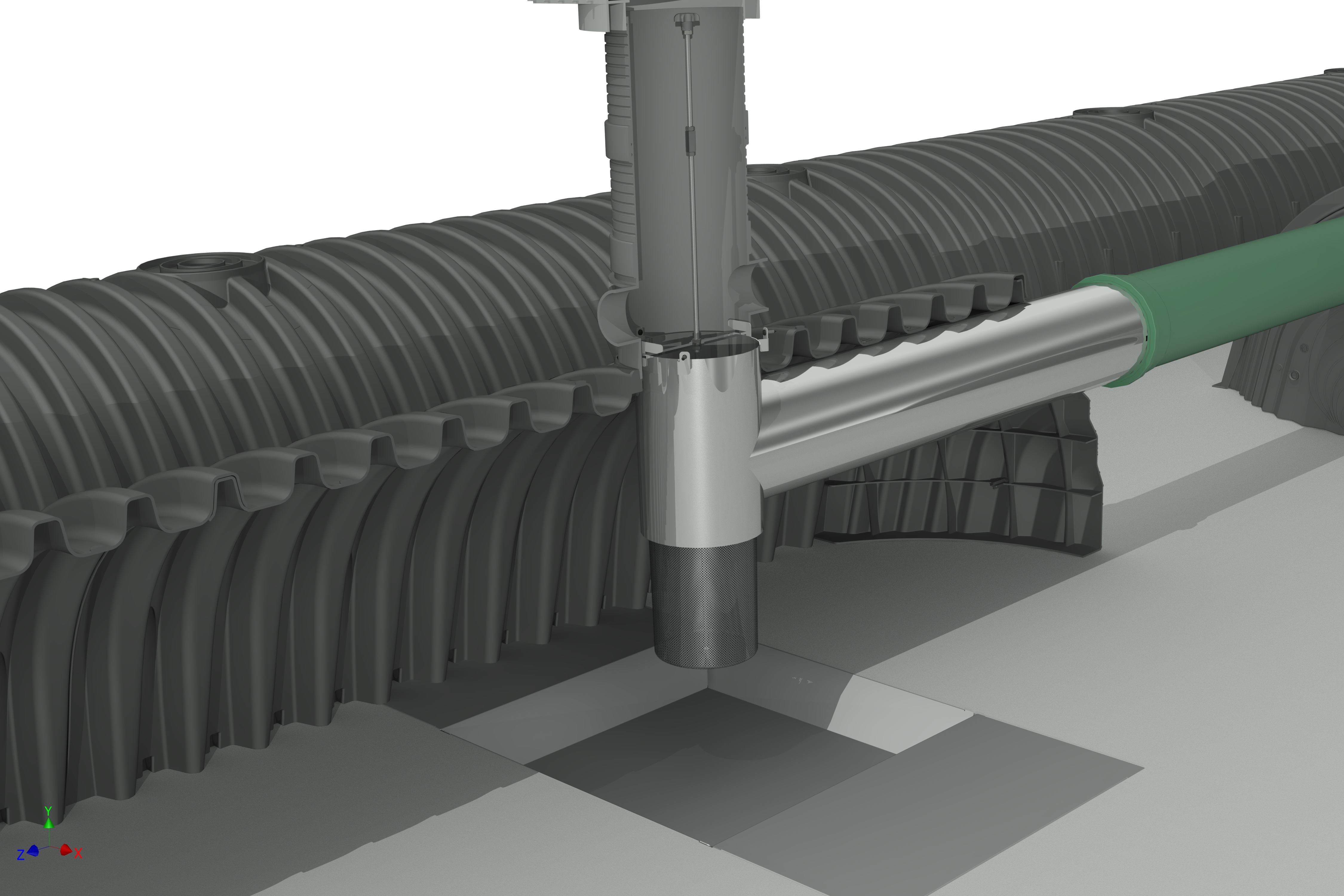

DRAINMAX sedimentation filter and separator installation kit Ø250
  • Sedimentation, filtration, and separation
  • High-quality stainless steel filter with removal device for easy cleaning from above
  • Stainless steel immersion tube with pipe connection and filter lock
  • Includes PLURAFIT shaft system for soil cover up to 0.5 m
4106
1.160,25 €
incl. VAT plus shippment
- 0%
1.160,25 €
Productdetails
1 Pieces 3957
DRAINMAX tunnel pump sump
  • High-quality stainless steel sump
  • Easy installation underneath the DRANMAX tunnel
  • Prevents geotextile or EPDM membrane from being sucked in
  • Trough for extracting water and dirt
3957
592,62 €
incl. VAT plus shippment
- 0%
592,62 €
Productdetails
1 Pieces 4153
DRAINMAX ventilation DN100/Ø110mm
  • Durable PP
  • Ventilation of the DRAINMAX system
4153
26,18 €
incl. VAT plus shippment
- 0%
26,18 €
Productdetails
25 Metre 4150
DRAINMAX EPDM liner 13.5 m wide, 1.5 mm thickness
  • High durability with a service life of more than 50 years
  • Resistant to weathering, UV radiation, and ozone
  • Non-toxic, environmentally neutral, and biologically harmless
  • Exceptional flexibility with high elasticity
  • Fish and plant compatible, food safe
  • 100% impermeability thanks to prefabricated sheets
  • Quick and easy installation thanks to prefabricated sheets
  • Extremely high mechanical load capacity and tear resistance
4150
257,36 €
incl. VAT plus shippment
- 0%
257,36 €
Productdetails
145 Metre 1400
Geotextile fleece with 2.5 m width, 300 g/m²
  • Price per meter of roll
  • Special filter fabric as overlay for the DRAINMAX tunnel or as separator geotextile
  • very high load capacity
  • high water permeability
1400
7,08 €
incl. VAT plus shippment
- 0%
7,08 €
Productdetails
1 Pieces 4156
DRAINMAX EPDM feedthrough, 2 x DN100-300
  • Individual positioning of the feed-throughs in the system
  • Easy installation on site
  • Including mounting material
4156
402,22 €
incl. VAT plus shippment
- 0%
402,22 €
Productdetails
1 Pieces 4154
DRAINMAX discharge throttle DN150 up to 20 l/s
  • Adjustable up to 20 l/s
  • Extremely robust design
  • easy to clean
4154
1.231,65 €
incl. VAT plus shippment
- 0%
1.231,65 €
Productdetails
