AQUALOOP single membrane station incl. membrane, pump unit and control unit


overview:

Membrane station

  • including backwash pump
  • treatment rate up to 1600 l / day
  • incl. controller

Control unit

  • smart controller adjusts the required quantity as per the need for saving energy
  • automatic back-flushing mode for low-maintenance operation
  • automatic sludge disposal to minimize maintenance
  • mode change of clean water storage tank
  • different modes can be selected
  • automatic vacation and maintenance mode
  • automatic display of maintenance mode
  • optional pressure sensor for monitoring function
  • low voltage operation with small systems
  • connection for controlling supplemental supply in domestic water works
Code: AL-MS-C-Single
Productnumber: 230006
EAN Code: 4251173101865

Please request

0
2.476,24 €
plus 19% VAT plus Shippment
2.946,73 €
incl. VAT. plus Shippment
Pieces
ON REQUEST
The AQUALOOP single membrane station is equipped with a membrane cartridge. It is placed vertically in the water to be cleaned and attached to the permeate hose. The built-in pump sucks the water through the membrane and conveys it through the permeate hose into the clear water tank. The length of the permeate hose (see accessories Horizon ½ "hose) is adapted to the tank geometry up to a maximum height of 2 m. In order to guarantee a permanently high flow rate and a long service life of the membrane, it is automatically cleaned on a regular basis. The membrane is cleaned for this purpose backwashed with a built-in pump at regular intervals. The system takes the required backwash volume from the backwash tank, which is located above the pump. The membrane station has a hose connection to which a blower can be connected. The air then cleans the fibers and at the same time supplies oxygen for biological degradation in the membrane container.

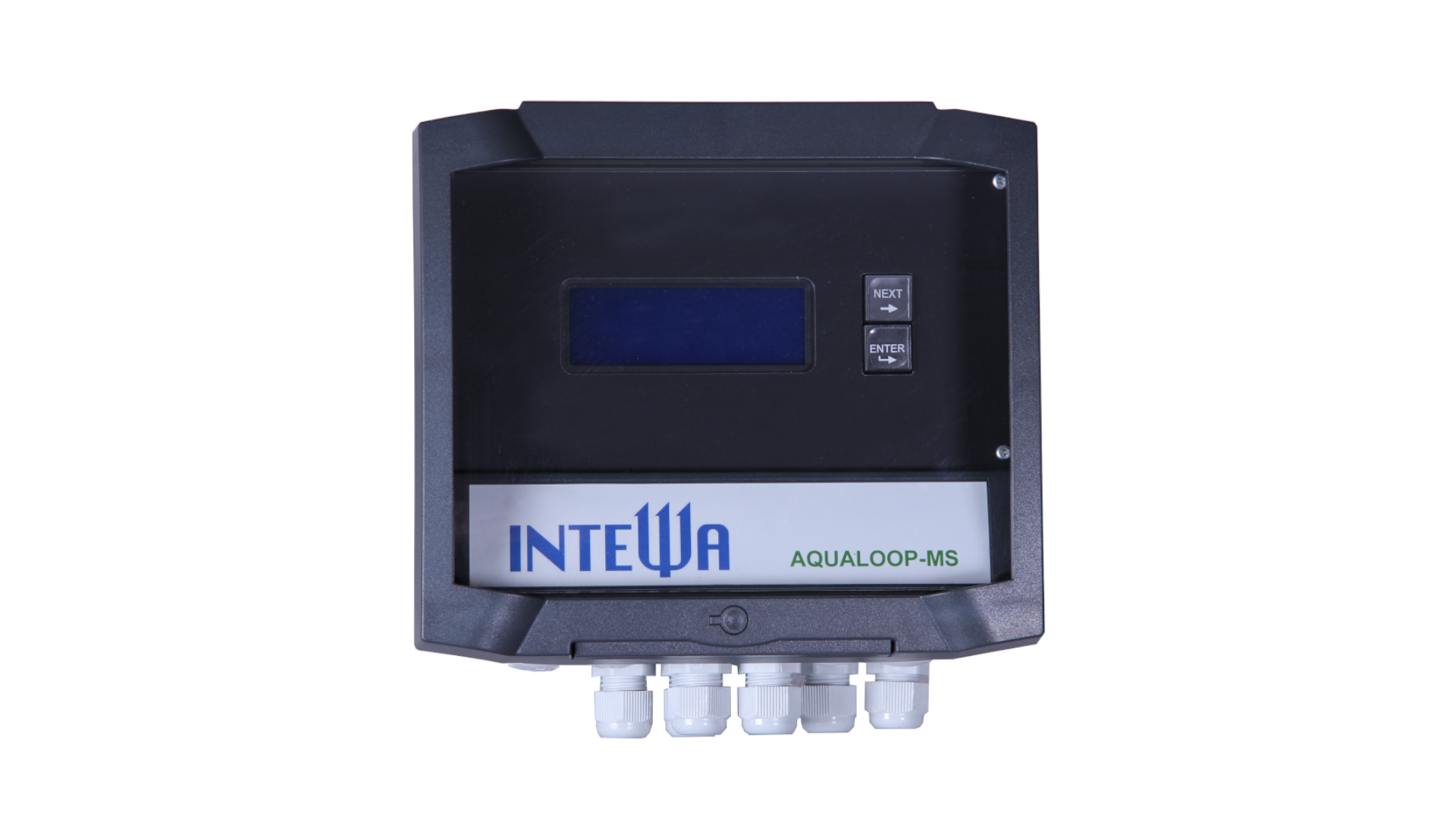

Control: A control belongs to each membrane station. This controls the AQUALOOP water treatment system fully automatically. The operating status can be easily read from an illuminated LCD display.

You can find further information at www.intewa.com
Empty

{"AttrNames":[{"AttributeDesc":"Anschluss Ausgang","AttributeName":"td_Anschluss_Ausgang"},{"AttributeDesc":"Anschluss Dom [mm]","AttributeName":"td_Anschluss_Dom"},{"AttributeDesc":"Anschluss Druckseite [\" IG]","AttributeName":"td_Anschl_Druckseite"},{"AttributeDesc":"Anschluss Gebläse [mm]","AttributeName":"td_Anschl_Geblaese"},{"AttributeDesc":"Anschluss Notüberlauf [DN]","AttributeName":"td_Anschl_Notueberl"},{"AttributeDesc":"Anschluss Schlauch [mm]","AttributeName":"td_Anschl_Schlauch"},{"AttributeDesc":"Beladungskapazität","AttributeName":"td_Beladungskapazit"},{"AttributeDesc":"Belastungsklasse","AttributeName":"td_Belastungsklasse"},{"AttributeDesc":"Drosselabfluss [l\/s]","AttributeName":"td_Drosselabfluss"},{"AttributeDesc":"Durchmesser Innen [mm]","AttributeName":"td_Durchm_Innen"},{"AttributeDesc":"Durchmesser Schwimmschalterkabel [mm]","AttributeName":"td_Durchm_Schwimmsch"},{"AttributeDesc":"Durchmesser Steuerleitung [mm]","AttributeName":"td_Durchm_Steuerleit"},{"AttributeDesc":"Effektive Nutzlänge [m]","AttributeName":"td_Effektive_Nutzlae"},{"AttributeDesc":"Farbe","AttributeName":"td_Farbe"},{"AttributeDesc":"Filterfläche [m²]","AttributeName":"td_Filterflaeche"},{"AttributeDesc":"Fördermedium","AttributeName":"td_Foerdermedium"},{"AttributeDesc":"Gesamtporösität [mm]","AttributeName":"td_Gesamtporoesitaet"},{"AttributeDesc":"Inhaltsstoffe","AttributeName":"td_Inhaltsstoffe"},{"AttributeDesc":"Kabellänge [m]","AttributeName":"td_Kabellaenge"},{"AttributeDesc":"Klarwasseranschluss","AttributeName":"td_Klarwasseranschl"},{"AttributeDesc":"Korngröße [mm]","AttributeName":"td_Korngroesse"},{"AttributeDesc":"Länge Spitzende [mm]","AttributeName":"td_Laenge_Spitzende"},{"AttributeDesc":"Lebensdauer UV Lampe [h]","AttributeName":"td_Lebensdauer_UV"},{"AttributeDesc":"Max. Ansaughöhe (selbstsaugend) [m]","AttributeName":"td_Max_Ansaughoehe"},{"AttributeDesc":"Max. Betriebsdruck [bar]","AttributeName":"td_Max_Betriebsdruck"},{"AttributeDesc":"Max. Durchfluss [l\/h\/bar]","AttributeName":"td_Max_Durchfluss"},{"AttributeDesc":"Max. Eintauchtiefe [m]","AttributeName":"td_Max_Eintauchtiefe"},{"AttributeDesc":"Max. Pumpendruck [bar]","AttributeName":"td_Max_Pumpendruck"},{"AttributeDesc":"Max. Stromaufnahme [A]","AttributeName":"td_Max_Stromaufnahme"},{"AttributeDesc":"Max. Volumenstrom [l\/min]","AttributeName":"td_Max_Volumenstrom"},{"AttributeDesc":"Messbereich [m]","AttributeName":"td_Messbereich"},{"AttributeDesc":"Öffnungsweite [mm]","AttributeName":"td_Oeffnungsweite"},{"AttributeDesc":"Packungseinheit [l]","AttributeName":"td_Packungseinheit"},{"AttributeDesc":"Porenweite Lage 1 grob [PPI]","AttributeName":"td_Porenweite_grob"},{"AttributeDesc":"Porenweite Lage 2 mittel [PPI]","AttributeName":"td_Porenweite_mittel"},{"AttributeDesc":"Prüfung","AttributeName":"td_Pruefung"},{"AttributeDesc":"Rollenlänge [m]","AttributeName":"td_Rollenlaenge"},{"AttributeDesc":"Schalldruck [dBA]","AttributeName":"td_Schalldruck"},{"AttributeDesc":"Schlammpumpenanschluss","AttributeName":"td_Schlammpumpenansc"},{"AttributeDesc":"Schüttdichte [mm]","AttributeName":"td_Schuettdichte"},{"AttributeDesc":"Schutzklasse [IP]","AttributeName":"td_Schutzklasse"},{"AttributeDesc":"Siebweite [mm]","AttributeName":"td_Siebweite"},{"AttributeDesc":"Signalausgang [mA]","AttributeName":"td_Signalausgang"},{"AttributeDesc":"Signaleingang","AttributeName":"td_Signaleingang"},{"AttributeDesc":"Spannungsausgang [VDC]","AttributeName":"td_Spannungsausgang"},{"AttributeDesc":"Spannungseingang [VAC\/Hz]","AttributeName":"td_Spannungseingang"},{"AttributeDesc":"Speichervolumen [l]","AttributeName":"td_Speichervolumen"},{"AttributeDesc":"Spezifische Oberfläche [m²]","AttributeName":"td_Spezifische_Oberf"},{"AttributeDesc":"Spezifisches Gewicht [kg\/m³]","AttributeName":"td_Spezifisches_Gewi"},{"AttributeDesc":"Wirkungsgrad effektiv [%]","AttributeName":"td_Wirkungsgrad_effe"},{"AttributeDesc":"Zulaufanschluss [DN]","AttributeName":"td_Zulaufanschluss"},{"AttributeDesc":"Zusatzhöhe [mm]","AttributeName":"td_Zusatzhoehe"},{"AttributeDesc":"Gewicht Brutto (inkl. Verpackung) [kg]","AttributeName":"Vers_Gewicht_brutto"},{"AttributeDesc":"EU-Palette max. Bestückung [Stk]","AttributeName":"Vers_EU_Palette_max"},{"AttributeDesc":"Breite EU-Palette max. bestückt [m]","AttributeName":"Vers_Breite_EU_Palle"},{"AttributeDesc":"Breite Karton [mm]","AttributeName":"Vers_Breite_Karton"},{"AttributeDesc":"Gewicht Karton [kg]","AttributeName":"Vers_Gewicht_Karton"},{"AttributeDesc":"Anschluss Eingang","AttributeName":"td_Anschluss_Eingang"},{"AttributeDesc":"Anschluss Permeat [AG]","AttributeName":"td_Anschl_Permeat"},{"AttributeDesc":"Anschlüsse","AttributeName":"td_Anschluesse"},{"AttributeDesc":"Durchfluss bei 400J\/m²","AttributeName":"td_Durchfluss_jm"},{"AttributeDesc":"Durchführung","AttributeName":"td_Durchfuehrung"},{"AttributeDesc":"Durchmesser [mm]","AttributeName":"td_Durchmesser"},{"AttributeDesc":"Durchmesser Außen [mm]","AttributeName":"td_Durchm_Aussen"},{"AttributeDesc":"Flächengewicht [g\/m²]","AttributeName":"td_Flaechengewicht"},{"AttributeDesc":"Höhe Schmutzwasseranschluss [mm]","AttributeName":"td_Hoehe_Schmutzwass"},{"AttributeDesc":"Höhe Zulauf [mm]","AttributeName":"td_Hoehe_Zulauf"},{"AttributeDesc":"Höhenversatz Δh [mm]","AttributeName":"td_Hoehenversatz"},{"AttributeDesc":"Inhalt [ml]","AttributeName":"td_Inhalt"},{"AttributeDesc":"Inhalt Kleber [ml]","AttributeName":"td_Inhalt_Kleber"},{"AttributeDesc":"Inhalt Primer [ml]","AttributeName":"td_Inhalt_Primer"},{"AttributeDesc":"Koppelanschluss","AttributeName":"td_Koppelanschluss"},{"AttributeDesc":"Länge Schwimmschalterkabel [m]","AttributeName":"td_Laenge_Schwimmsch"},{"AttributeDesc":"Länge Sensorkabel [m]","AttributeName":"td_Laenge_Sensorkabe"},{"AttributeDesc":"Länge Steuerleitung [m]","AttributeName":"td_Laenge_Steuerleit"},{"AttributeDesc":"Lebensdauer","AttributeName":"td_Lebensdauer"},{"AttributeDesc":"Leistungsaufnahme [W]","AttributeName":"td_Leistungsaufnahme"},{"AttributeDesc":"Material","AttributeName":"td_Material"},{"AttributeDesc":"Max. Förderhöhe [m]","AttributeName":"td_Max_Foerderhoehe"},{"AttributeDesc":"Max. Höhe des höchsten Verbrauchers [m]","AttributeName":"td_Max_Hoehe_Verbrau"},{"AttributeDesc":"Minimaler Biegeradius [mm]","AttributeName":"td_Min_Biegeradius"},{"AttributeDesc":"Monitoring","AttributeName":"td_Monitoring"},{"AttributeDesc":"Netzspannung [V AC \/ Hz]","AttributeName":"td_Netzspannung"},{"AttributeDesc":"Niveauausgleich [mm]","AttributeName":"td_Niveauausgleich"},{"AttributeDesc":"Prüfkraft [kN]","AttributeName":"td_Pruefkraft"},{"AttributeDesc":"Pumpeneinschaltdruck [bar]","AttributeName":"td_Pumpeneinschaltdr"},{"AttributeDesc":"Sauganschluss [\" AG]","AttributeName":"td_Sauganschluss"},{"AttributeDesc":"Schmutzwasseranschluss","AttributeName":"td_Schmutzwasseransc"},{"AttributeDesc":"Schulterhöhe [mm]","AttributeName":"td_Schulterhoehe"},{"AttributeDesc":"Standbyleistung [W]","AttributeName":"td_Standbyleistung"},{"AttributeDesc":"Stempeldurchdrückkraft [N]","AttributeName":"td_Stempeldurchdruec"},{"AttributeDesc":"Strahlerleistung [W]","AttributeName":"td_Strahlerleistung"},{"AttributeDesc":"Temperaturbereich [°C]","AttributeName":"td_Temperaturbereich"},{"AttributeDesc":"Toleranz [%]","AttributeName":"td_Toleranz"},{"AttributeDesc":"Trinkwasseranschluss [\" IG]","AttributeName":"td_Trinkwasseranschl"},{"AttributeDesc":"Überlastschutz","AttributeName":"td_Ueberlastschutz"},{"AttributeDesc":"UV Stabilisierung","AttributeName":"td_UV_Stabilisierung"},{"AttributeDesc":"Wasserdurchlässigkeit [l\/sm²]","AttributeName":"td_Wasserdurchlaessi"},{"AttributeDesc":"Wechselsprung [l\/s]","AttributeName":"td_Wechselsprung"},{"AttributeDesc":"Zertifizierung","AttributeName":"td_Zertifizierung"},{"AttributeDesc":"Zul. Trinkwasservordruck [bar]","AttributeName":"td_Zul_Trinkwasservo"},{"AttributeDesc":"Betriebstemperatur [°C]","AttributeName":"td_Zul_Verarbeitungs"},{"AttributeDesc":"Zulassung","AttributeName":"td_Zulassung"},{"AttributeDesc":"Abmessung EU Palette max. bestückt (L x B x H)[cm]","AttributeName":"Vers_Abmessung_EU_Pa"},{"AttributeDesc":"Abmessung Karton (Länge x Breite x Höhe) [mm]","AttributeName":"Vers_Abmessung_Karto"},{"AttributeDesc":"Gewicht EU Palette max. bestückt (LKW) [kg]","AttributeName":"Vers_Gewicht_EU_Pale"},{"AttributeDesc":"Volumen Karton [m³]","AttributeName":"Vers_Volumen_Karton"},{"AttributeDesc":"Volumen EU-Palette max. (LKW) [m³]","AttributeName":"Vers_Volumen_EU_Pall"},{"AttributeDesc":"Länge EU_Palette max. bestückt [m]","AttributeName":"Vers_Laenge_EU_Palet"},{"AttributeDesc":"Volumen [l]","AttributeName":"Vers_Volumen"},{"AttributeDesc":"Betriebsspannung [VDC]","AttributeName":"td_Betriebsspannung"},{"AttributeDesc":"Einsatzdruckbereich [bar] ","AttributeName":"td_Einsatzdruckberei"},{"AttributeDesc":"Kabeldurchmesser [mm]","AttributeName":"td_Kabeldurchmesser"},{"AttributeDesc":"Geotextilrobustheitsklasse","AttributeName":"td_Geotextilrobusth"},{"AttributeDesc":"Mittlere Porengröße [µm]","AttributeName":"td_Mit_Porengroesse"},{"AttributeDesc":"Höhe EU-Palette max. bestückt [m]","AttributeName":"Vers_Hoehe_EU_Palett"},{"AttributeDesc":"Höhe Karton [mm]","AttributeName":"Vers_Hoehe_Karton"},{"AttributeDesc":"Länge Karton [mm]","AttributeName":"Vers_Laenge_Karton"},{"AttributeDesc":"Gewicht_Netto [kg]","AttributeName":"td_Gewicht_Netto"},{"AttributeDesc":"Zul. Trinkwasserdruck [bar]","AttributeName":"td_Zul_Trinkwasserdr"}]}

{"Attr":[{"RecordID":1075,"EntityID":2000,"Attr_PR":-1,"Attr_td_Anschl_Geblaese":14.0000,"Attr_td_Durchmesser":"179","Attr_td_Klarwasseranschl":"3\/4\" AG","Attr_td_Leistungsaufnahme":"60","Attr_td_Netzspannung":"110-230 \/ ","Attr_td_Schutzklasse":"68","Attr_Vers_Abmessung_Karto":"600x400x26","Attr_Vers_Gewicht_EU_Pale":"197","Attr_Vers_EU_Palette_max":"28","Attr_Vers_Volumen_Karton":"0,0636","Attr_Vers_Volumen_EU_Pall":"1,88","Attr_Vers_Breite_EU_Palle":"1,99","Attr_Vers_Gewicht_Karton":"13"}]}

90

0

0

8,5

Kg
